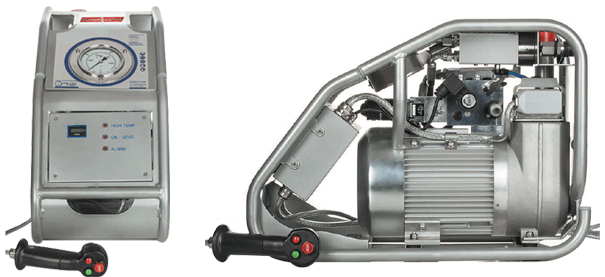

Electric Driven Hydraulic Pump

Electric Driven Hydraulic Pump


Features :

  • Huge oil flow due to intelligent electronic controlling and powerful motor.
  • All from the remote hand control grip with one single operation..
  • Extremely high quality valves and components for a high duty cycle to ensure reliability and durability of the unit.
  • Low pressure return Filter and High Pressure Filter (10 μm) with electronic clogging sensors and alarms in control box.
  • Capable of continuous operation - minimal heat generation for efficient bolting.
  • Low running costs - Brush-free synchronized motor, maintenance-free and low in wear.

Applications:

Electric driven hydraulic pump, usable worldwide up to 1600 bar for bolt tensioning tools.
  • Totally remote control the pump from the controller hand grip.
  • Designed to work in adverse environmental conditions.

Technical Details:

Pump
Current Supply 230V-50Hz / 100V-60Hz
Power kW 1.5
Rated Current 10.5 A (230 V) / 20.5 A (110 V)
Starting Power 3.3 X IN
COS Ø 0.94
Turning Speed rpm 2800 r.p.m.
Tank Capacity I 4.7 l.
Available Volume I 1.7 l.
Oil Flow:
Maximum Pressure bar 2000
Weight
Empty Weight Kg 35
Dimensions
L x W x H mm 570 x 280 x 400
