PSD-EXT Series

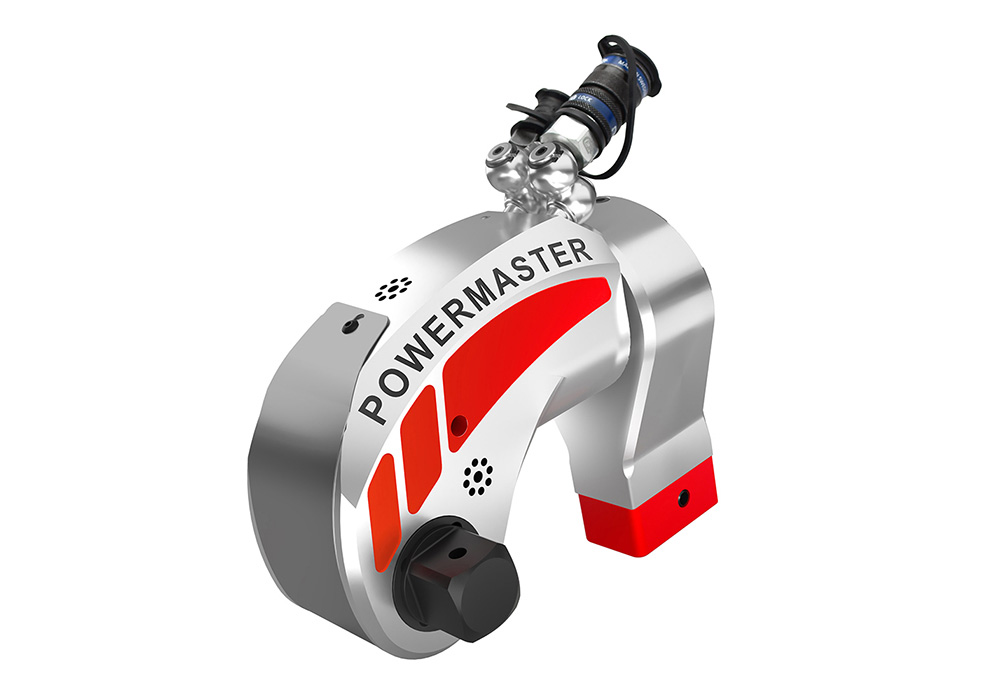

PSD-EXT Series

PSD-EX Series 3D Drawing PSD-EX Series Accessories PSD-EXT Series Application Pictures PSD-EX Series Download Catalog


The PSD-EXT series has the same features as the PSD series with the exception of having the splines on the outside of the tool body Vs on the inside for the PSD series.


Technical Data
Model No. PSD-EXT 2 PSD-EXT 3 PSD-EXT 5 PSD-EXT 7 PSD-EXT 11
Square Drive 3/4” 1” 1.1/2” 1.1/2” 1.1/2”
Min. Torque
Kg-m(Ft/Lbs)
17 (127) 45 (330) 78 (565) 102 (740) 152 (1,100)
Max. Torque
Kg-m(Ft/Lbs)
175 (1,270) 460 (3,330) 774 (5,600) 1020 (7,400) 1520 (11,000)
Output Accuracy +/-3% +/-3% +/-3% +/-3% +/-3%
Repeatability 100% 100% 100% 100% 100%
Duty Cycle 100% 100% 100% 100% 100%
Tool Weight Kg/(Lbs) 2.64 / (5.82) 5.00 / (11.02) 8.4 / (18.60) 12.7 / (28.00) 15.8 / (34.80)

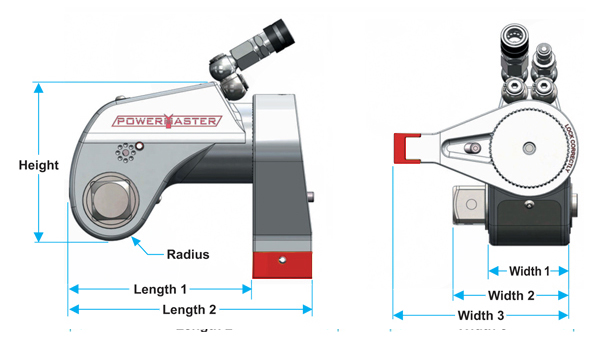

Dimensions
Model
No.
PSD-EXT 2 PSD-EXT 3 PSD-EXT 5 PSD-EXT 7 PSD-EXT 11
mm inch mm inch mm inch mm inch mm inch
Height 105.32 4.15 134.50 5.30 161.60 6.36 182.20 7.17 198.35 7.81
Length1 112.43 4.43 152.80 6.02 181.58 7.15 208.43 8.20 227.35 8.95
Length2 160.43 6.30 212.80 8.38 251.76 9.91 290.93 11.45 313.33 12.33
Radius 24.89 0.98 32.50 1.28 41.27 1.62 45.20 1.78 49.88 1.96
Width1 51.00 2.01 67.00 2.64 79.40 3.13 91.80 3.61 100.00 3.94
Width2 68.82 2.71 93.27 3.67 111.20 4.38 128.35 5.05 136.80 5.38
Width3 117.55 4.63 148.70 5.85 175.10 6.89 203.90 8.03 225.00 8.86

Note : All tool weights include Couplers, Swivels, Reaction Arm and Internal Oil.
