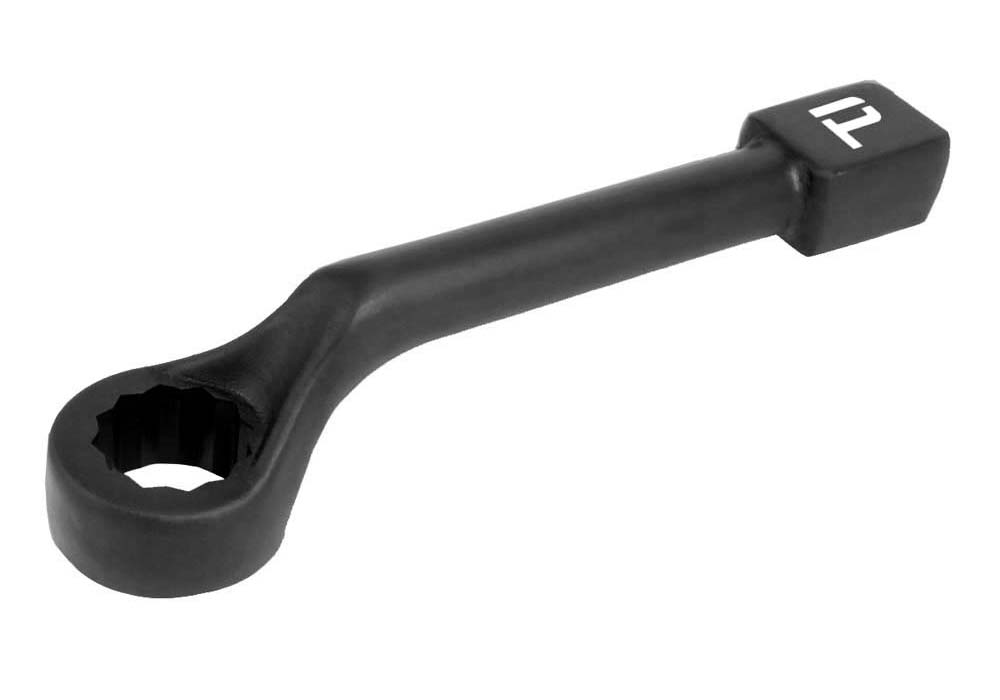

Fractional Bihexagon |
 |
|
 |
|
| |
A/F
inch |
MODEL
NO. |
T
inch |
D
inch |
OAL
inch |
WT
lbs. |
15/16
1
1.1/16 |
ASOW15
ASOW16
ASOW17 |
0.787
0.787
0.984 |
1.653
1.653
2.047 |
9.842
9.842
10.629 |
2.160
2.200
2.330 |
1.1/8
1.3/16
1.1/4 |
ASOW18
ASOW19
ASOW20 |
0.984
0.984
0.984 |
2.047
2.047
2.047 |
10.629
10.629
10.629 |
2.200
2.420
2.530 |
1.5/16
1.3/8
1.7/16 |
ASOW21
ASOW22
ASOW23 |
0.984
1.259
1.259 |
2.047
2.677
2.677 |
10.629
12.283
12.283 |
4.070
3.520
3.300 |
1.1/2
1.5/8
1.11/16 |
ASOW24
ASOW26
ASOW27 |
1.259
1.259
1.377 |
2.677
2.677
3.228 |
12.283
12.283
13.385 |
3.890
4.730
4.950 |
1.3/4
1.13/16
1.7/8 |
ASOW28
ASOW29
ASOW30 |
1.377
1.377
1.377 |
3.228
3.228
3.228 |
13.385
13.385
13.385 |
4.840
6.050
6.530 |
2
2.1/16
2.3/16 |
ASOW32
ASOW33
ASOW35 |
1.377
1.496
1.496 |
3.228
3.228
3.228 |
13.385
14.173
14.173 |
6.290
13.180
13.130 |
2.1/4
2.5/16
2.3/8 |
ASOW36
ASOW37
ASOW38 |
1.496
1.496
1.732 |
3.228
3.228
4.330 |
14.173
14.173
14.960 |
11.960
11.550
11.180 |
2.7/16
2.1/2
2.9/16 |
ASOW39
ASOW40
ASOW41 |
1.732
1.732
1.732 |
4.330
4.330
4.330 |
14.960
14.960
14.960 |
16.940
16.940
16.830 |
2.5/8
2.3/4
2.13/16 |
ASOW42
ASOW44
ASOW45 |
1.732
1.968
1.968 |
4.330
5.000
5.000 |
14.960
15.748
15.748 |
16.280
16.104
15.730 |
2.7/8
2.15/16
3 |
ASOW46
ASOW47
ASOW48 |
1.968
1.968
1.968 |
5.000
5.000
5.000 |
15.748
15.748
15.748 |
15.400
15.400
15.140 |
3.1/8
3.3/8
3.1/2 |
ASOW50
ASOW54
ASOW56 |
1.968
2.244
2.244 |
5.000
5.984
5.984 |
15.748
18.307
18.307 |
14.740
23.500
23.430 |
3.3/4
3.7/8
3.15/16 |
ASOW60
ASOW62
ASOW63 |
2.244
2.244
2.244 |
5.984
5.984
5.984 |
18.307
18.307
18.307 |
23.210
22.550
22.220 |
4.1/8
4.1/4
4.5/16 |
ASOW66
ASOW68
ASOW69 |
2.480
2.480
2.480 |
7.637
7.637
7.637 |
21.259
21.259
21.259 |
26.400
26.290
25.830 |
4.1/2
4.5/8
4.3/4 |
ASOW72
ASOW74
ASOW76 |
2.480
2.480
2.480 |
7.637
7.637
7.637 |
21.259
21.259
21.259 |
25.480
24.970
24.420 |
4.7/8
5
5.1/8 |
ASOW78
ASOW80
ASOW82 |
2.480
2.480
2.480 |
7.637
7.637
7.637 |
21.259
21.259
21.259 |
24.200
23.870
23.430 |
|
| |
|
|
