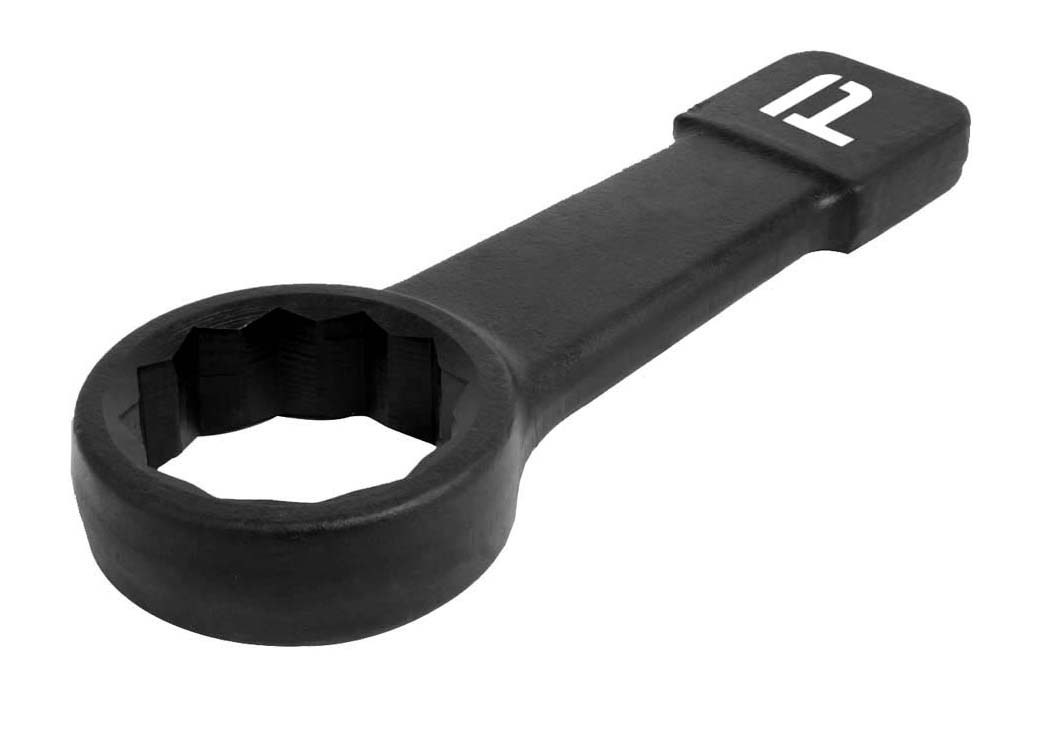

Metric Bihexagon |
 |
|
 |
|
| |
A/F
mm |
MODEL
NO. |
T
mm |
D
mm |
OAL
mm |
Wt
Kg. |
22
23
24 |
MSW22
MSW23
MSW24 |
18.0
18.0
18.0 |
48.0
48.0
48.0 |
182.0
182.0
182.0 |
0.610
0.610
0.610 |
25
26
27 |
MSW25
MSW26
MSW27 |
18.0
18.0
18.0 |
48.0
48.0
48.0 |
182.0
182.0
182.0 |
0.590
0.590
0.590 |
28
29
30 |
MSW28
MSW29
MSW30 |
18.0
18.0
18.0 |
54.0
54.0
54.0 |
185.0
185.0
185.0 |
0.580
0.560
0.550 |
31
32
33 |
MSW31
MSW32
MSW33 |
18.0
18.0
18.0 |
54.0
54.0
54.0 |
185.0
185.0
185.0 |
0.540
0.550
0.540 |
34
35
36 |
MSW34
MSW35
MSW36 |
18.0
18.0
22.0 |
54.0
54.0
64.0 |
185.0
185.0
215.0 |
0.540
0.540
1.060 |
37
38
39 |
MSW37
MSW38
MSW39 |
22.0
22.0
22.0 |
64.0
64.0
64.0 |
215.0
215.0
215.0 |
1.060
1.040
1.030 |
40
41
42 |
MSW40
MSW41
MSW42 |
22.0
22.0
22.0 |
64.0
64.0
64.0 |
215.0
215.0
215.0 |
1.030
1.030
1.020 |
43
44
45 |
MSW43
MSW44
MSW45 |
25.0
25.0
25.0 |
76.0
76.0
76.0 |
238.0
238.0
238.0 |
1.480
1.470
1.430 |
46
47
48 |
MSW46
MSW47
MSW48 |
25.0
25.0
25.0 |
76.0
76.0
80.0 |
238.0
238.0
240.0 |
1.400
1.380
1.360 |
49
50
51 |
MSW49
MSW50
MSW51 |
25.0
25.0
25.0 |
80.0
80.0
80.0 |
240.0
240.0
240.0 |
1.350
1.340
1.400 |
52
54
55 |
MSW52
MSW54
MSW55 |
25.0
25.0
28.0 |
80.0
80.0
88.0 |
240.0
240.0
262.0 |
1.400
2.350
2.320 |
56
57
58 |
MSW56
MSW57
MSW58 |
28.0
28.0
28.0 |
88.0
88.0
88.0 |
262.0
262.0
262.0 |
2.325
2.310
2.300 |
59
60
61 |
MSW59
MSW60
MSW61 |
28.0
28.0
28.0 |
94.0
94.0
94.0 |
265.0
265.0
265.0 |
2.250
2.140
2.140 |
62
65
67 |
MSW62
MSW63
MSW67 |
28.0
30.0
30.0 |
94.0
104.0
104.0 |
265.0
285.0
285.0 |
2.500
2.710
2.770 |
70
73
75 |
MSW70
MSW73
MSW75 |
35.0
35.0
35.0 |
110.0
110.0
110.0 |
315.0
315.0
315.0 |
3.410
3.410
3.400 |
76
80
85 |
MSW76
MSW80
MSW85 |
35.0
38.0
38.0 |
110.0
126.0
126.0 |
315.0
340.0
340.0 |
3.370
4.860
4.400 |
86
90
95 |
MSW86
MSW90
MSW95 |
38.0
42.0
42.0 |
126.0
152.0
152.0 |
340.0
400.0
400.0 |
4.300
4.650
4.360 |
100
105
110 |
MSW100
MSW105
MSW110 |
42.0
50.0
50.0 |
152.0
172.0
172.0 |
400.0
410.0
435.0 |
7.490
10.580
11.670 |
115
120
125 |
MSW115
MSW120
MSW125 |
50.0
56.0
56.0 |
172.0
194.0
194.0 |
435.0
475.0
475.0 |
10.760
16.070
16.960 |
130
135
140 |
MSW130
MSW135
MSW140 |
60.0
60.0
65.0 |
205.0
205.0
230.0 |
505.0
510.0
565.0 |
16.850
16.550
19.000 |
145
150
155 |
MSW145
MSW150
MSW155 |
65.0
65.0
65.0 |
230.0
230.0
230.0 |
565.0
565.0
565.0 |
18.810
18.550
18.350 |
160
165
170 |
MSW160
MSW165
MSW170 |
70.0
70.0
70.0 |
270.0
270.0
270.0 |
635.0
635.0
635.0 |
29.900
29.700
29.250 |
175
180
185 |
MSW175
MSW180
MSW185 |
70.0
70.0
75.0 |
270.0
270.0
295.0 |
635.0
635.0
680.0 |
28.850
28.500
35.600 |
190
195
200 |
MSW190
MSW195
MSW200 |
75.0
75.0
75.0 |
295.0
295.0
295.0 |
680.0
680.0
680.0 |
35.400
35.200
34.900 |
205
210
215 |
MSW205
MSW210
MSW215 |
75.0
80.0
80.0 |
295.0
325.0
325.0 |
680.0
725.0
725.0 |
34.700
50.850
50.550 |
220
225
230 |
MSW220
MSW225
MSW230 |
80.0
80.0
80.0 |
325.0
325.0
325.0 |
725.0
725.0
725.0 |
50.100
49.800
49.500 |
|
| |
|
|
