Portable Pneumatic Tube Cleaners

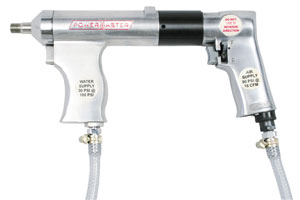

Pneumatic Tube CleanerPneumatic Tube Cleaner




Operation : The portable pneumatic tube cleaners use hollow shafting of different diameters as per tube I.D. to be cleaned which can be coupled together to form lengths as per the length of the tube to be cleaned.



Water flows through the hollow tube and washes out deposits that are dislodged by the cleaning tools attached to the driven shafts. Typical cleaning tools used are carbide drills for severely clogged tubes, brushes for light deposits and buffing tools for final polishing of tubes. The water flow is independently controlled allowing the user to determine how much water is needed in the application.



Model C-10 is typically used on oil coolers, small heat exchangers and condensers.
Model CP-315 is typically used on larger diameter tubes of process vessels, heat exchangers and condensers.


Tube I.D.'s suited for

Model
No.
Max Motor Power Free Speed
RPM
Air Supply Water Supply Weight
mm inch HP kW Min Max Min Max lbs. kg.
4.8-25.4 3/16-1 C-10 0.6 0.45 700 60psi@16cfm 90psi@16cfm 30psi 100psi 5.72 2.6
22.2-51.0 7/8-2 CP-315 1 0.746 1000 60psi@16cfm 90psi@16cfm 30psi 100psi 6.60 3.0
Note: The pneumatic tube cleaners above are supplied with a heavy duty metal carrying case with separate provision to house upto 8, 4ft. (1.2m) long hollow shafts, 15ft (4.6m) air hose, 15ft (4.6m) water hose.
