Pneumatic Tube Cleaners


Pneumatic Tube Cleaners

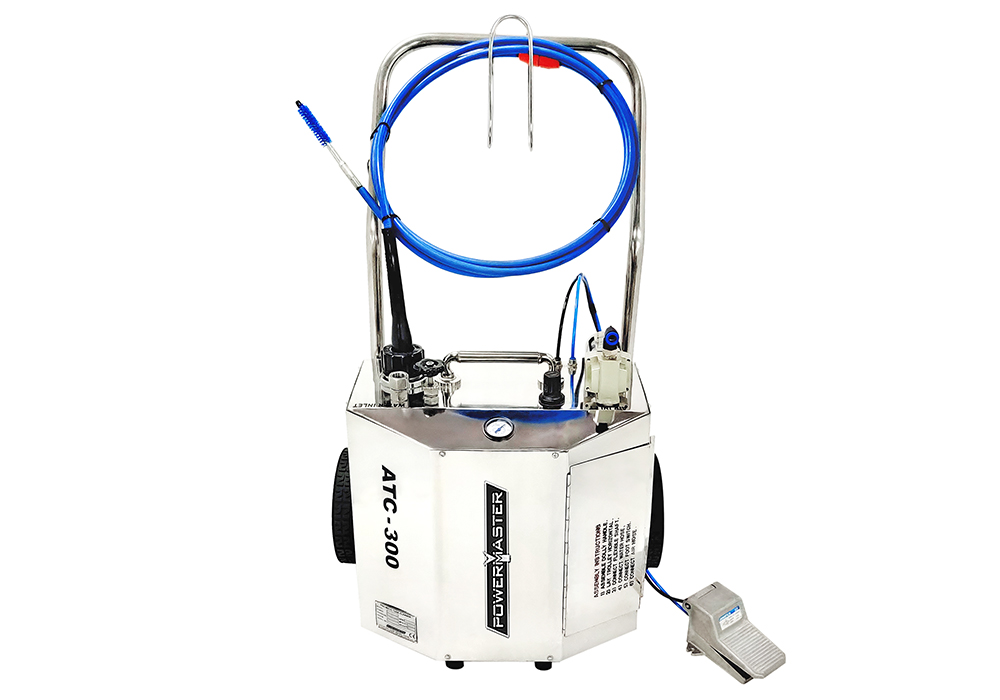

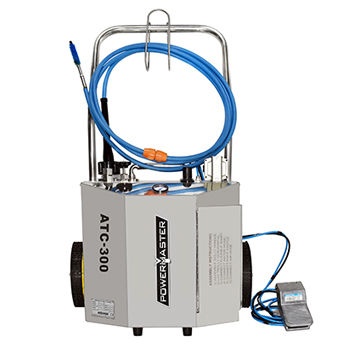

Powermaster Model ATC-300 Extra Heavy Duty Pneumatic Tube Cleaning Machine includes air filter, regulator, lubricator, adjustable speed/torque control, tool storage box and air foot paddle. Shaft rotation can be set at optimum speed for each application. Excellent for application where using electric equipment is hazardous.



The ATC-300 uses a cleaning tool mounted to the tip of a flexible shaft, which is available in different lengths and diameters to fit the size of the tube to be cleaned. For wet applications as the shaft rotates inside its watertight nylon casing, the unit feeds water through the casing to the cleaning tool. A foot pedal controls shaft rotation and water flow. While the operator feeds the rotating shaft assembly through the tube, the water flushes out deposits as they are loosened.



Features of Pneumatic Tube Cleaners

  • Shock Resistant - Excellent for applications where using electric equipment is hazardous.
  • Corrosion Resistant - Stainless steel cover and chassis for long life.
  • Versatile - Interchangeability of different size flexible shafts and tube cleaning tools.
  • Speed/Torque control - Shaft rotation can be set at optimum speed for each application.
  • No Tooling - Quick disconnect of flexible shaft.
  • Easy Maneuverability - Large Wheels.
  • Time Saving - Simultaneous water flush to remove deposits from tubes.
  • Cleanliness - Foot pedal for operator convenience to activate shaft rotation and water flow to reduced water consumption and Cleaner working area.
Tube I.D. Model
No.
Motor Power Motor Speed
RPM
Weight Dimension
mm inch HP KW Ibs. kg. High Wide Deep
6.4 & UP 1/4 & UP ATC-300 4 3.00 300-3000 64 29 38"(975mm) 22"(560mm) 16"(406mm)
