Battery Torque Wrench DYNAMO-S Series
The DYNAMO-S Battery Torque Wrench with Data Logging is a handheld, cordless torque tool designed for precise and controlled tightening applications. Featuring a digital interface with an LCD display, it enables accurate torque setting with capacities up to 4200 Nm.
An integrated smart control unit allows precise torque adjustment while built-in data logging automatically records every tightening cycle. Tightening data can be retrieved wirelessly through the Wi-Fi web interface, providing complete traceability, simplified documentation, and improved operational efficiency.
A practical and efficient solution for precise torque tightening with complete data traceability.

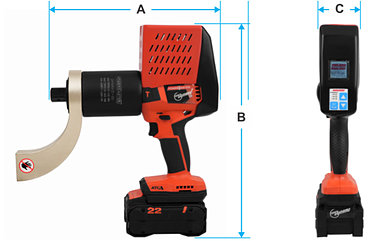

| Model No. | A (mm) | B (mm) | C (mm) |
|---|---|---|---|
| DYNAMO-S - 50 | 270 | 350 | 75 |
| DYNAMO-S - 100 | 300 | 350 | 75 |
| DYNAMO-S - 200 | 300 | 350 | 90 |
| DYNAMO-S - 300 | 300 | 350 | 90 |
Features
The DYNAMO-S Series features :
- Soft start for smooth, controlled operation
- Automatic shut-off upon reaching the set torque
- Dedicated SET and RUN modes to prevent accidental operation
- Digital torque setting with precise increment and decrement control
- High-efficiency brushless motor for reliable performance and extended service life
- Multi-stage planetary gearbox with optimized tooth design
- Automatic data logging of every tightening cycle
- Wireless data access via Wi-Fi through a browser-based interface
Technical Details
| Model | Min. Torque | Max. Torque | Free Speed | Sq. Size | Weight | |||
|---|---|---|---|---|---|---|---|---|
| Lb.ft | Nm | Lb.ft | Nm | rpm | inch | kg | ||
| DYNAMO-S-50 | 110 | 150 | 479 | 650 | 25 | 3/4 | 6.7 | |
| DYNAMO-S-100 | 221 | 300 | 1106 | 1500 | 4 | 1 | 7.1 | |
| DYNAMO-S-200 | 553 | 750 | 2212 | 3000 | 2.3 | 1 | 9.7 | |
| DYNAMO-S-300 | 811 | 1100 | 3097 | 4200 | 1.6 | 1.1/2 | 14.2 | |
