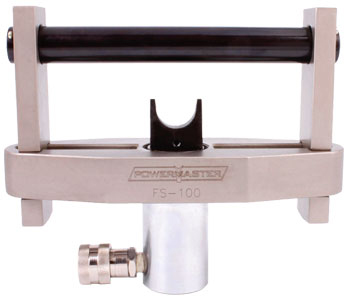

Hydraulic Flange Spreaders
Watch Video
Download CatalogHydraulic Flange Spreaders are used for safety opening pipe flanges. Available in capacities of 5 tonnes and 10 tonnes the versatility of both models enables the user to open flanges up to 92mm thick. Operated with a standard hydraulic hand pump and connecting hose and supplied in a handy steel storage case, Hydraulic Flange Spreaders can be operated individually, or as a pair when opening large diameter flanges. With Hydraulic Flange Spreaders it takes minutes open the toughest flanges without the risks of sparks caused by hammer blows and chisels.

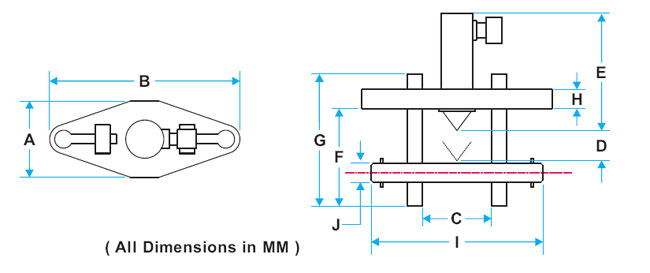

| Model No. | A | B | C | D | E | F | G | H | I | J | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| min | max | ||||||||||
| FS-50 | 77 | 210 | 61 | 157 | 10 | 192 | 69 | 131 | 25 | 205 | 18 |
| FS-100 | 110 | 290 | 61 | 226 | 10 | 165 | 89 | 180 | 38 | 274 | 31 |
| Model No. | Capacity | Stroke | Oil Capacity | Max. Flange Thickness | Flange Diameter | Stud Size | Standard Wedge | Optional Wedge |
|---|---|---|---|---|---|---|---|---|
| tonnes | mm | cm3 | mm | mm (inch) | mm | mm | mm | |
| FS-50 | 5 | 39 | 25 | 2 x 58 | 1150mm (45") | 19 - 29 | 3 - 29 | 30 - 56 |
| FS-100 | 10 | 55 | 78 | 2 x 93 | 1900mm (75") | 32 - 41 | 3 - 29 | 30 - 56 |
