Hydraulic Nut Splitters

Hydraulic Nut Splitters

Standard Features

  • No spark or flame. No risk to volatile surrounding.
  • Triangular Chisel providing three cutting edges.
  • Light and compact design for ease of operation and handling.
  • Dedicated cylinder with minimal stroke for faster operation.
  • Rear end connection for ease of handling and safe-connection.
  • Laser marked for easy setting. No separate spacer for each Nut.
  • 700 bar working pressure.
  • Calibrated system. No damage to stud / bolt threads.

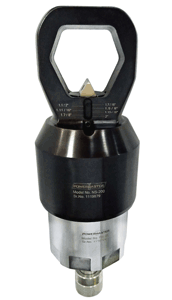

Power Splitter
Model No. Stud Size Nut A/F Size Load L Max. D T W Weight
mm inch mm inch Ton mm mm mm mm kg
NS-012AH* 6 - 12 1/4 - 1/2 7 - 22 1/4 - 7/8 5 135 45 7 19 1.4
NS-100AH* 11 - 16 7/10 - 5/8 13 - 24 1/2 - 1 10 196 73 9 19.5 3.4
NS-105 11 - 22 7/16 - 7/8 16 - 36 5/8 - 1.7/16 25 256 106 13.5 36 9.6
NS-200 22 - 32 7/8 - 1.1/4 36 - 51 1.7/16 - 2 25 256 108 14.5 38 10
NS-204 32 - 38 1.1/4 - 1.1/2 46 - 60 1.13/16 - 2.3/8 50 329 154 18.2 50 25
NS-210 35 - 45 1.3/8 - 1.3/4 57 - 70 2.1/4 - 2.3/4 50 357 154 20 51 26.5
NS-308 45 - 57 1.3/4 - 2.1/4 70 - 89 2.3/4 - 3.1/2 100 395 200 21 74 49.5
NS-314 50 - 64 2 - 2.1/2 79 - 88 3.1/8 - 3.7/8 100 496 202 23 78 52.5
NS-404 64 - 70 2.1/2 - 2.3/4 95 - 108 3.3/4 - 4.1/4 150 450 246 32 89.5 81.5
NS-500 76 - 83 3 - 3.1/4 114 - 127 4.1/2 - 5 150 456 250 32 98 87.5
NS-506 83 - 89 3.1/4 - 3.1/2 124 - 136 4.7/8 - 5.3/8 150 470 250 40 105 93.5

* Angle Head.
Power-splitters can be used / supplied with a variety of Hand-pumps, Electric-Pumps or Air-Operated Pumps.
