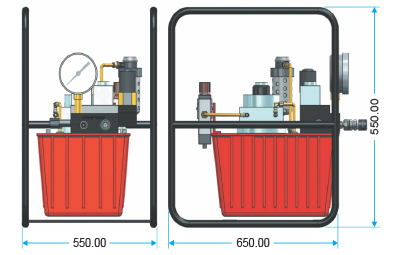

Ap-1000 (Pneumatic)

AP1000 with Mono Port

AP1000 with Mono Port

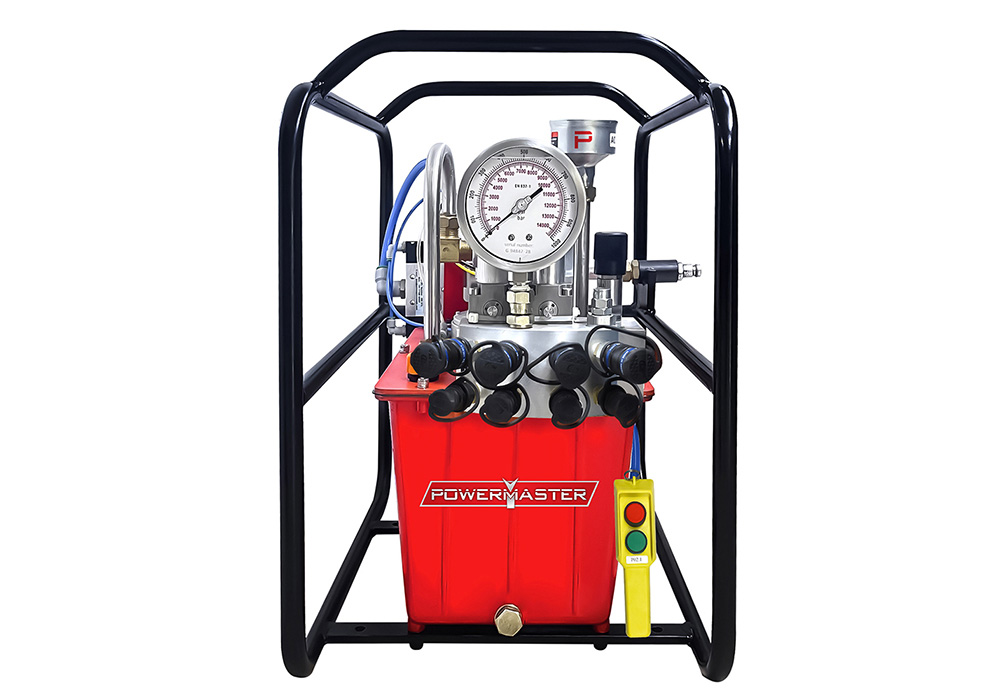

AP1000 with Quadra Port ( 4 Port )

AP1000 with Quadra Port ( 4 Port )

AP1000 - High Flow - High Speed for Heavy Duty Application

  • Quadra - Port Multi - Port Manifold (Max. 4 Ports).
  • Cool running continuous duty axial piston pump.
  • Powerful industrial duty air motor.
  • Runs on 70 cfm / 90 PSI of air.
  • Quiet operation (approx. 75-80 dBA @ 10,000 PSI).
  • Rugged remote pendant to control motor and valve.
  • Easily adjustable pressure control knob.
  • Auto - dump relieves oil pressure from hoses.
  • Filter - lubricator for long trouble free operation.
  • 2 Gallon oil reservoir.
  • Precise PSI/BAR pressure gauge.
  • Quick - connect no-drip couplers with safety locking collar.
  • Supplied with dual non-conductive high pressure hose with couplers.

Ap-1000 (Pneumatic)

Resvr. Size (Ltr.) Valve Motor Specifications Flow Rate @ 70 cfm/ 90psi Weight
Control Type 600 psi 10,000 psi kg lbs
11 Solenoid 3 Way/2 Pos. Industrial Rotary Air 11 lpm 0.9 lpm 37 81

Retract pressure is preset at 1,300 PSI.

PUMP ACCESSORIES

Quadra-Port
Quadra-Port
No-Drip Quick-Connect Couplers
