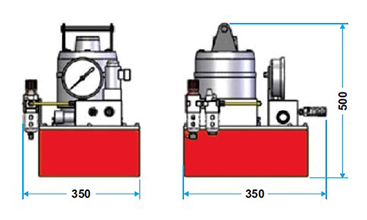

Ap-1000X (Pneumatic)
Download CatalogAP1000X - High Flow - High Speed for Heavy Duty Application
Quality Means Lower Life-Cycle Costs
- Over 100,000 cycles.
- Continuous duty up to 122°F (50°C) ambient.
- Quiet operation (75-80 DBA @ 10,000 PSI)
- Proven Design = Proven Reliability.
Designed With Safety In Mind
- Easily adjustable pressure regulator (relief) valve.
- Fixed 1,500 psi (103 bar) pressure retract relief valve.
- Rugged remote pendant to control motor and valve.
- Quick connect no-drip couplers with safety locking collar.
Enhanced Usability
- Cool running, continuous duty two-speed high performance pump.
- Runs on 70 cfm/90 PSI of air.
- Retract internal relief valve protects tool.
- 3-way 2-position air pilot valve standard.
- Use with single or double acting tools. Not for lifting applications.
- Standard Hand Remote.
| Resvr. Size (Gal.) | Valve | Motor Specifications | Flow Rate @ 70 cfm/90 PSI | Weight | |||
|---|---|---|---|---|---|---|---|
| Control | Type | kg | lbs | ||||
| 2 | Pneumatic air control | 3 Way/2 Pos. | 6-AM-NRV; 3000 rpm; 4 HP |
9.4 lpm @ 6.9 bar |
1.1 lpm @ 700 bar |
34 | 75 |
