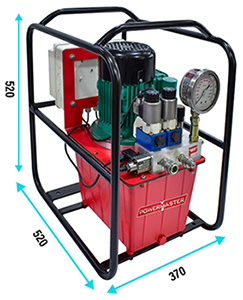

EP-1000 Auto (Electric)
EP-1000AUTO (Auto Cycle) - High Speed for Heavy Duty Application
- Available in Manual and Auto Cycle versions.
- Automatic advance and retract stroke control for greater comfort and
- highly efficient operation.
- Rugged remote pendant to control pump in Auto and Manual mode.
- Hands Free operation for operators in Auto mode.
- Cool running continuous duty axial piston pump.
- Single phase induction motor.
- Starts under full load.
- Runs on reduced voltage.
- Quiet operation (approx. 80 dBA @ 10,000 PSI).
- Easily adjustable pressure control knob.
- Auto-dump relieves oil pressure from hoses.
- Completely enclosed motor housing and electronics.
- 2 Gallon oil reservoir.
- Precise PSI/BAR pressure gauge
- Quick-connect no-drip couplers with safety locking collar.
- Supplied with dual non-conductive high pressure hose
| Resvr. Size (Gal.) | Valve | Motor Specifications | Flow Rate | Weight | |||
|---|---|---|---|---|---|---|---|
| Control | Type | 600 psi | 10,000 psi | kg | lbs | ||
| 2 | Solenoid | 3 Way/2 Pos. | 1.5 HP Single Phase | 11 lpm | 0.9 lpm | 38 | 84 |
