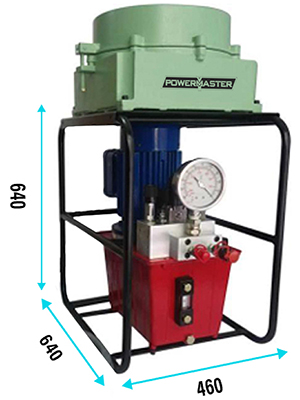

EP-1000EX (Electric)
EP1000EX (Flame Proof) - High Flow - High Speed for Heavy Duty Application
- 3 phase 440V motor, applicable to explosion proof occasion.
- Atex certified motor.
- Cool running continuous duty axial piston pump.
- Oil tank with an excellent cooling system provided for longer and continuous working hours.
- Flameproof enclosure motor housing and electronics.
- Autostop feature stop pump automatically while not use for 10 sec.
- Starts under full load
- Runs on reduced voltage.
- Quiet operation.(Approx 80dBA @10000 PSI)
- Easily adjustable pressure control knob.
- Auto dump relieves oil pressure from hoses.
- 2 gallon oil reservoir.
- Precise PSI/BAR pressure gauge.
- Quick connect no drip couplers with a safely locking collar.
- Supplied with dual non-conductive high pressure hose with couplers.
| Resvr. Size(Gal) | Valve | Motor Specifications | Flow Rate | Weight | |||
|---|---|---|---|---|---|---|---|
| Control | Type | 600 psi | 10,000 psi | kg | lbs | ||
| 2 | Solenoid | 3 Way/2 Pos. | 1.5 HP THREE PHASE | 11 lpm | 0.9 lpm | 90 | 198 |
Retract pressure is preset at 1,300 PSI.
