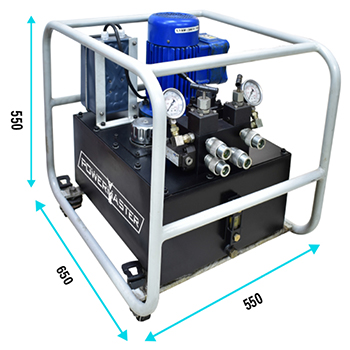

PM-HJ-1000 - Hydraulic Jack Pump for Heavy Duty Application
- Two jacks can be operated at once.
- 6 to 7 Gallon oil reservoir.
- Powerful industrial heavy duty three phase electric motor 1.5 HP.
- Needle valve to hold jack at required pressure.
- Operate at 700 Bar with constant flow of 0.9 Ipm. Radial piston pump.
- Easily operated with hand lever rotary valve.
- Noise less operation.
- Oil level indicator.
| Resvr.
Size(Gal) |
Valve |
Motor Specifications |
Flow Rate |
Weight |
| Control |
Type |
600 psi |
10,000 psi |
kg |
lbs |
| 6 |
Solenoid |
3 Way/2 Pos. |
1.5 HP THREE PHASE |
11 lpm |
0.9 lpm |
88 |
194 |
