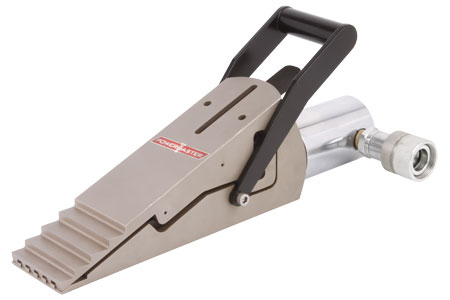

Hydraulic Vertical Lifting Wedge HVW-10

Hydraulic Vertical Lifting Wedge HVW-10

The HVW-10 has been developed as an easy to use / cost effective way to find solutions to heavy lifting where minimal clearance is available. It will lift objects vertically where an access gap of 3/8”(9.5mm) or more is available. The HVW-10 will lift an object fast, secure and safe with a lifting force of 16 Tons per tool. Multiple units can be used if greater lifting force is needed.

The HVW-10 can be used for

  • Lifting Heavy Machinery.
  • Equipment Installation.
  • Plant Maintenance.
  • Equipment Alignment.
  • Assisting with Toe Jack Access.

Special Features

  • Access gap of only 3/8”(9.5mm) needed.
  • 3/4”(19.0mm) of vertical lift available from each step.
  • Max. height of 50mm on 4th step.
  • Automatic spring return retraction.
  • Interlocking first step ensures safe hold.
  • No Slippage due to locking.
  • Will lift in a straight vertical place.

Operating Benefits

  • Time / Cost Savings.
  • Lowest Weight / Lifting Force Ratio.
  • Precise.
  • Easy to set up and use.
  • Safe.
  • Minimal Maintenance.
  • Fast for labour & time savings.
  • Use multiple units for greater lifting.

Kit Options

Mini Kit

  • 1 x Hydraulic Vertical Lifting Wedge Assembly
  • 1 x Safety Block
  • 1 x Stepped Block
  • 1 x Instruction Manual
  • 1 x Carry Case
HVW Mini Kit

Standard Kit

  • 1 x Hydraulic Vertical Lifting Wedge Assembly
  • 1 x 10,000 psi (700 Bar) Two Stage Hydraulic Hand Pump
  • 1 x 10,000 psi (700 Bar) Hydraulic Hose Length 6 feet
  • 1 x Safety Block
  • 1 x Stepped Block
  • 1 x Instruction Manual
  • 1 x Carry Case
HVW Standard Kit
