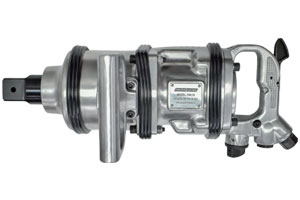

Heavy Duty Industrial PNEUMATIC Impact Wrenches |
|
 |
| |
 |
 |
 |
| TIW - 27 |
TIW - 48 |

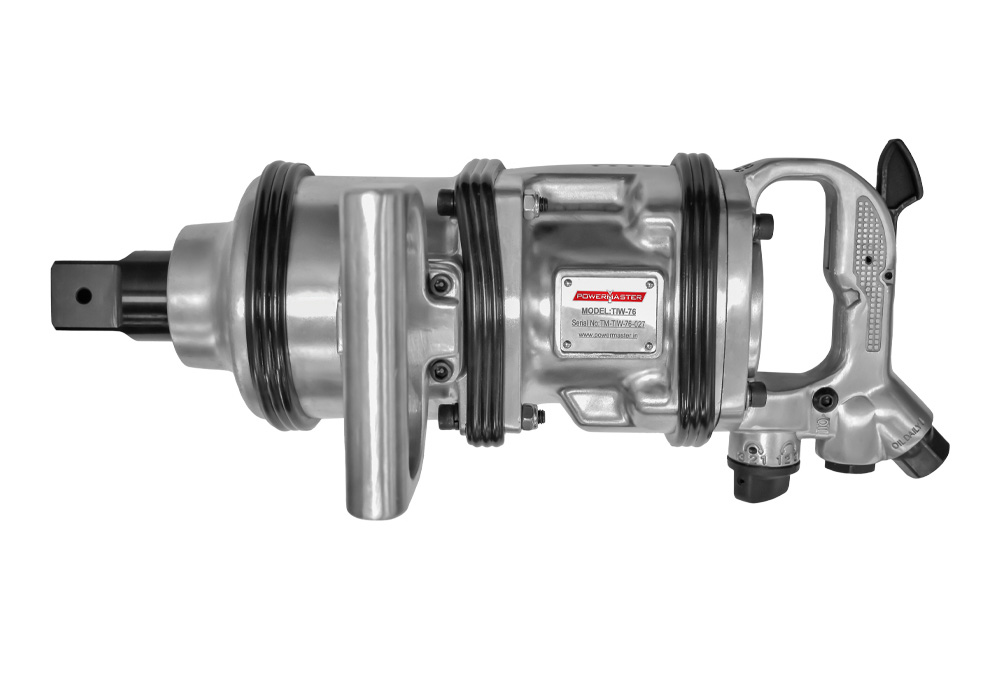

TIW - 76 |
| |
|
|
|
| |
Features / Benefits of Heavy Duty Industrial Pneumatic Impact Wrenches |
- Heavy Duty for
toughest applications.
- Highest torque output to weight
ratio in industry.
- Available Twin Hammer or Pin Clutch
Mechanisms for maximum versatility.
- Minimum Noise and Vibration.
- Available in 1/2 , 3/4”, 1” and 1.1/2”
square drives.
- Uses standard air supply.
|
| Model
No. |
TIW-16 |
TIW-27 |
TIW-48 |
TIW-76 |
| Bolt Capacity |
16 mm (5/8") |
27 mm
(1.1/8") |
48 mm
(1.7/8") |
76 mm
(3") |
| Square Drive Size |
1/2" |
3/4" |
1" |
1.1/2" |
| Max. Torque |
745 Nm (585 ft.lb) |
1018 Nm
(750 ft.Ib) |
2712 Nm
(2000 ft.Ib) |
4068 Nm
(3000 ft.Ib) |
| Air Inlet |
1/4" |
1/4' |
3/8" |
1/2" |
| Hose Size (mm) |
9.5 |
10 |
13 |
19 |
| Sound Level (dBA) |
95 |
95 |
95 |
95 |
| Vibration (m/s2) |
2.9 |
3/4 |
5.5 |
11.0 |
| Air Pressure Needed |
90 psi (6 bar) |
90 psi
(6 bar) |
90 psi
(6 bar) |
90 psi
(6 bar) |
| Net Weight (kg) |
2.7 |
4.8 |
10.8 |
16.9 |
|
| |
Mechanism |
|
Pin Clutch - (DYNA PACT CLUTCH) |
| Two Pin Clutch hammers strike the anvil, provides high torque, low vibration and fast run downs. This mechanism delivers higher performance and extended durability. |
| |
|
|
Pin Hammer |
| Good connection of Pin & Hammer produces excellent stability and durability. It generates in creditable high torque and low vibration. |
| |
|
|
Thin Hammer |
| Unique Mechanism for continues torque increase with two solid ring hammers. It delivers an instantaneous, balanced blow. More powerful than any other mechanism on the market. |
| |
