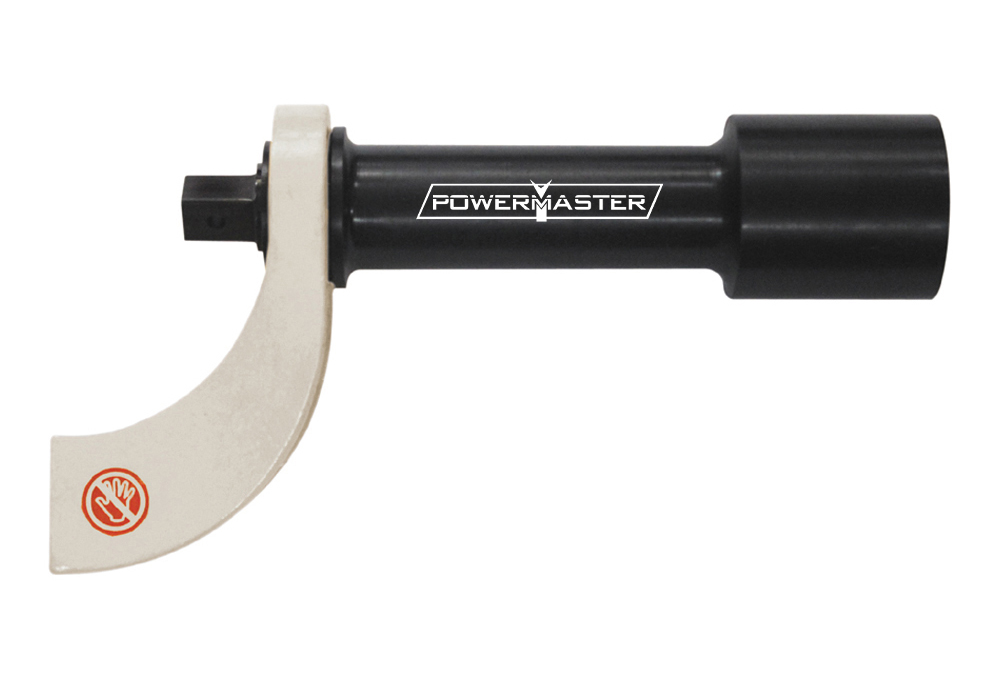

VEGA Series Accessories
Wheel extensions are used to reach the wheel hub bolts & nuts, where fitment of tool is not feasible.
Powermaster has complete range of wheel extensions as refered below:
Technical Specifications
| Model No. | Sq. Drive | L1 | L2 | L3 | D1 | D2 | H |
|---|---|---|---|---|---|---|---|
| inch | mm | mm | mm | mm | mm | mm | |
| PE 1206 | 3/4 | 210 | 150 | 185 | 75.5 | 60 | 142 |
| PE 1208 | 3/4 | 260 | 200 | 235 | 75.5 | 60 | 142 |
| PE 1210 | 3/4 | 310 | 250 | 285 | 75.5 | 60 | 142 |
| PE 1608 | 1 | 265 | 200 | 235 | 75.5 | 60 | 142 |
| PE 1610 | 1 | 315 | 250 | 285 | 75.5 | 60 | 142 |
| PE 1608H | 1 | 265 | 200 | 235 | 93.0 | 83 | 168 |
Reaction Arm
Different type of reaction arms are available for variety of application. Customized reaction arm are available on requirement.
Black Reaction
Double End Blank
Standard Reaction
