VEGA series Pneumatic Torque Wrenches

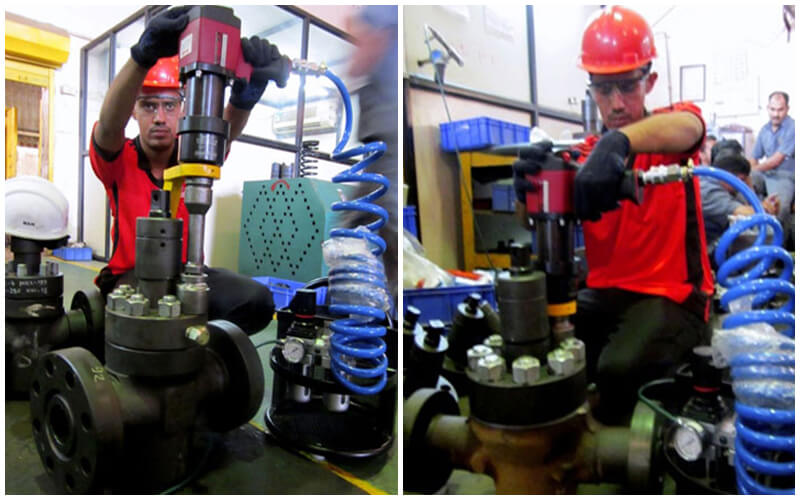

VEGA series Pneumatic Torque Wrenches 3d Drawing Vega Series Application Pictures VEGA series Pneumatic Torque Wrenches Download Catalog

Pneumatic Torque wrenches are the preferred torquing method to achieve productivity with less man-power. Powermaster Pneumatic torque wrenches offer the reliable and dependable solution for the torquing and un-torquing of heavy duty bolts and nuts at various industries where speed, power, accuracy and safety are required. Maximum operating pressure is 90 psi (6 bar).


Features of VEGA Series Pneumatic Torque Wrenches

  • External splined housing for accurate reaction arm positioning.
  • Gearbox made of Hardened alloy steel gears for reliable and accurate operation.
  • Pocket for hook attachment for suspending the wrench.
  • High speed thrust bearing for smooth operation under load.
  • Heavy duty, trouble free, rugged and reliable air motor for smooth operation.
  • Forward /Reverse lever for operating the machine in clockwise/anticlockwise direction.
  • Downward blow-out for safe air exit.

  Model No. Min. Torque Max. Torque Free Speed Square Drive Weight
Ft/Lbs Nm Ft/Lbs Nm rpm inch Kg.
VEGA - 15 30 45 130 180 42 1/2" / 3/4" 7.0
VEGA - 50 125 170 500 680 25 1/2" / 3/4" 9.5
VEGA - 75 185 250 750 1020 15 3/4" / 1" 9.5
VEGA - 100 250 340 1040 1400 9 3/4" / 1" 9.5
VEGA - 200 560 750 2200 3000 6 1" / 1.1/2" 11.0
VEGA - 300 750 1010 3000 4050 3 1" / 1.1/2" 12.5
VEGA - 400 1000 1350 4000 5400 2.5 1.1/2" 15.4
VEGA - 500 1200 1650 4800 6500 2 1.1/2" 16.5
VEGA - 600 1630 2200 6000 8100 1.5 1.1/2" 16.5
