External / Internal Case Cutter

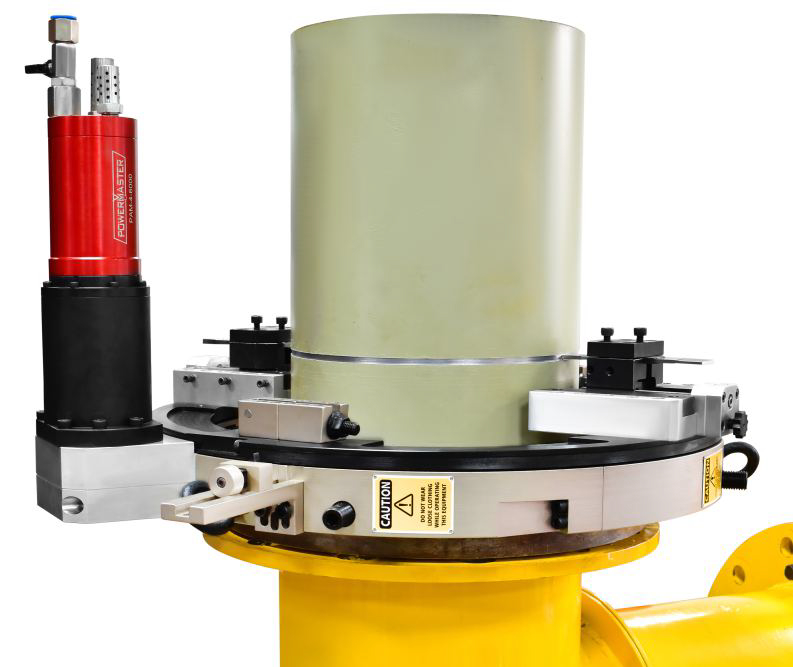

External Case Cutter
An External Case Cutter (ECC) is a specialized machining attachment or tool primarily used in the oil and gas industry, especially in wellhead maintenance, work over operations, and plug and abandonment (P&A) processes. It is designed to cut through the outer casing of well bores without damaging the internal components.
An External Case Cutter is mounted on the external diameter (OD) of a casing, pipe, or tubular structure and performs precise, concentric radial cuts. It's commonly adapted to a split-frame cold cutting machine, which clamps around the casing and rotates the cutter around the pipe circumference.

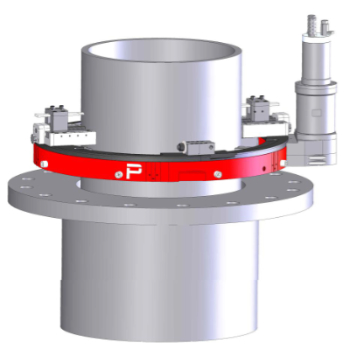

Standard Cutting

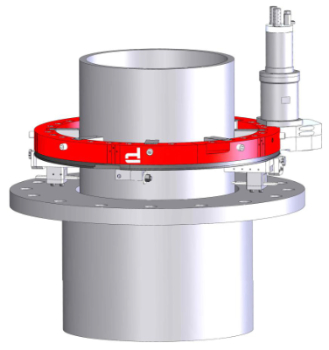

Close Length Cutting
| Specifications | Unit | CCE-SF-0612 | CCE-SF-1218 | CCE-SF-1824 | |
|---|---|---|---|---|---|
| Casing Pipe Size Covered | inch | 6.5/8 - 11.3/4 | 13.3/8 - 16 | 18.5/8 - 20 | |
| Clamping Range | inch | 6 - 12 | 12 - 18 | 18 - 24 | |
| mm | 152.4 - 304.8 | 304.8 - 457.2 | 457.2 - 609.6 | ||
| Tool Holder Stroke | inch | 4 | 4 | 4 | |
| Radial Feed Per Revolution | inch | 0.0028 | 0.0028 | 0.0028 | |
| mm | 0.072 | 0.072 | 0.072 | ||
| Ring Assembly Weight | kg | 24 | 38 | 48 | |
| Tool Holder Weight | kg | 4.5 | 4.5 | 4.5 | |
| Pneumatic Drive | Drive Assembly Weight | kg | 12.5 | 16 | 16 |
| Idle Speed | rpm | 15 | 12 | 12 | |
| Motor Power | hp | 3.5 | 3.5 | 3.5 | |
| Air Consumption | cfm | 98 | 98 | 98 | |
| Air Pressure | bar | 6 | 6 | 6 | |

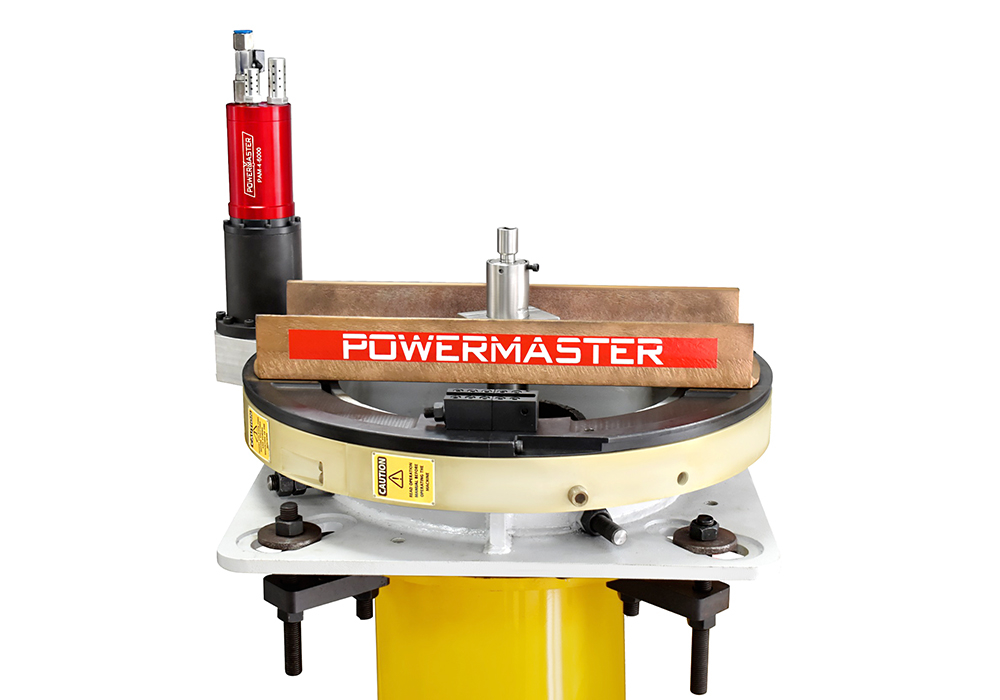

Internal Case Cutter
An Internal Case Cutter (ICC) is a down hole cutting tool designed to cut from inside the casing or tubing. It operates by expanding its cutting arms or blades radially outward to cut through the inner wall of the casing.

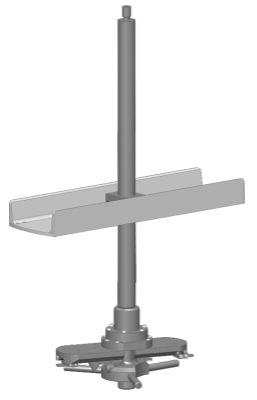

Internal Case Cutter
(ICC) Attachment

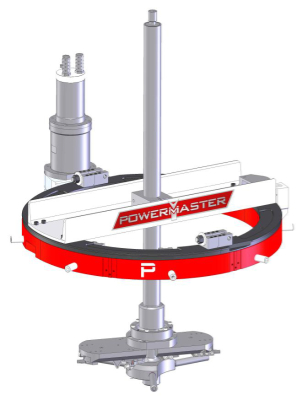

(ICC) Attachment Mounted
On Split Frame Machine

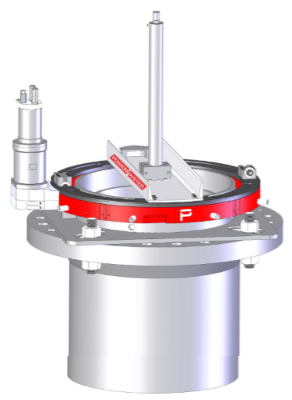

(ICC) Setup With Well
Head Adaptor on flange
Applications
- Cutting casing internally during plug and abandonment operations.
- Removing inner casings for retrieval or fishing operations.
- Cutting conductor pipes, surface casings, or intermediate strings.
- Used where external access is restricted or not possible.
Technical Details
| Specifications | Unit | CCI-0713 | CCI-1120 |
|---|---|---|---|
| Casing Pipe Size Covered | Inch | 6.5/8 - 13.3/8 | 10.3/4 - 20 |
| Standard Tool Holder Range | Inch | 6.5/8 - 9.5/8 | 10.3/4 - 13.3/8 |
| Extended Tool Holder Range | Inch | 10.3/4 - 13.3/8 | 16 - 20 |
| Tool Holder Stroke | Inch | 1 | 1 |
| Radial Feed Per Revolution | Inch | 0.0029 | 0.0029 |
| mm | 0.075 | 0.075 | |
| Pneumatic Motor Power | hp | 3.5 | 3.5 |
| Attachment Weight | kg | 72 | 82 |
| Casing Adaptor Model | CCA-0713U | CCA-1620U | |
| Adaptor Weight | kg | 42 | 64 |
