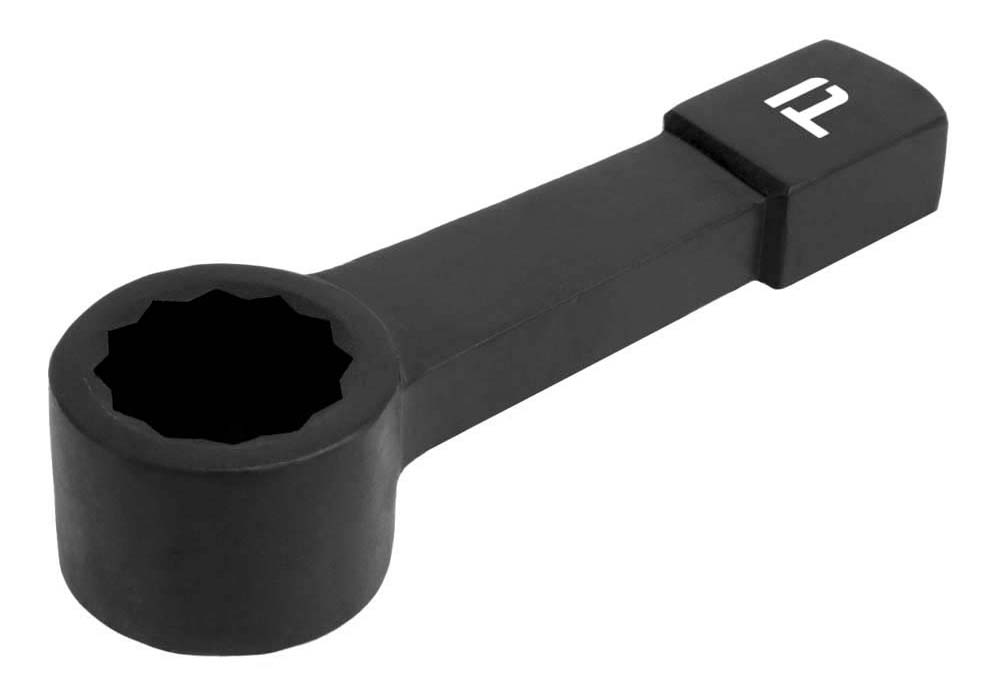

Metric Bihexagon
| A/F mm |
MODEL NO. |
T mm |
D mm |
OAL mm |
|---|---|---|---|---|
| 24 27 30 |
MBSW24 MBSW27 MBSW30 |
40.0 40.0 40.0 |
47.0 47.0 54.0 |
180.0 180.0 195.0 |
| 32 34 36 |
MBSW32 MBSW34 MBSW36 |
45.0 45.0 45.0 |
54.0 54.0 60.0 |
195.0 195.0 200.0 |
| 38 41 46 |
MBSW38 MBSW41 MBSW46 |
45.0 45.0 50.0 |
66.0 66.0 75.0 |
220.0 220.0 230.0 |
| 50 55 60 |
MBSW50 MBSW55 MBSW60 |
50.0 60.0 60.0 |
80.0 88.0 94.0 |
245.0 260.0 270.0 |
| 65 70 75 |
MBSW65 MBSW70 MBSW75 |
70.0
70.0 80.0 |
104.0 110.0 110.0 |
290.0 320.0 320.0 |
| 80 85 90 |
MBSW80 MBSW85 MBSW90 |
80.0 90.0 90.0 |
126.0 126.0 152.0 |
350.0 350.0 385.0 |
| 95 100 105 |
MBSW95 MBSW100 MBSW105 |
95.0 95.0 105.0 |
152.0 155.0 172.0 |
385.0 415.0 420.0 |
| 110 115 120 |
MBSW110 MBSW115 MBSW120 |
110.0 115.0 120.0 |
172.0 172.0 194.0 |
440.0 440.0 485.0 |
| 130 135 145 |
MBSW130 MBSW135 MBSW145 |
130.0 135.0 145.0 |
205.0 205.0 230.0 |
515.0 515.0 575.0 |
| 150 155 165 |
MBSW150 MBSW155 MBSW165 |
150.0 155.0 165.0 |
230.0 230.0 270.0 |
575.0 575.0 645.0 |
| 170 175 180 |
MBSW170 MBSW175 MBSW180 |
170.0 175.0 180.0 |
270.0 270.0 270.0 |
645.0 645.0 645.0 |
| 200 215 230 |
MBSW200 MBSW215 MBSW230 |
200.0 215.0 230.0 |
295.0 325.0 325.0 |
690.0 735.0 735.0 |
