Flange Pipe Facing Machine Flange Facer FF-4000

flange-pipe-facing-machine-flange-facer-ff-4000

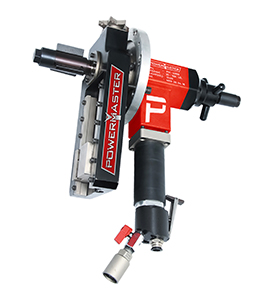

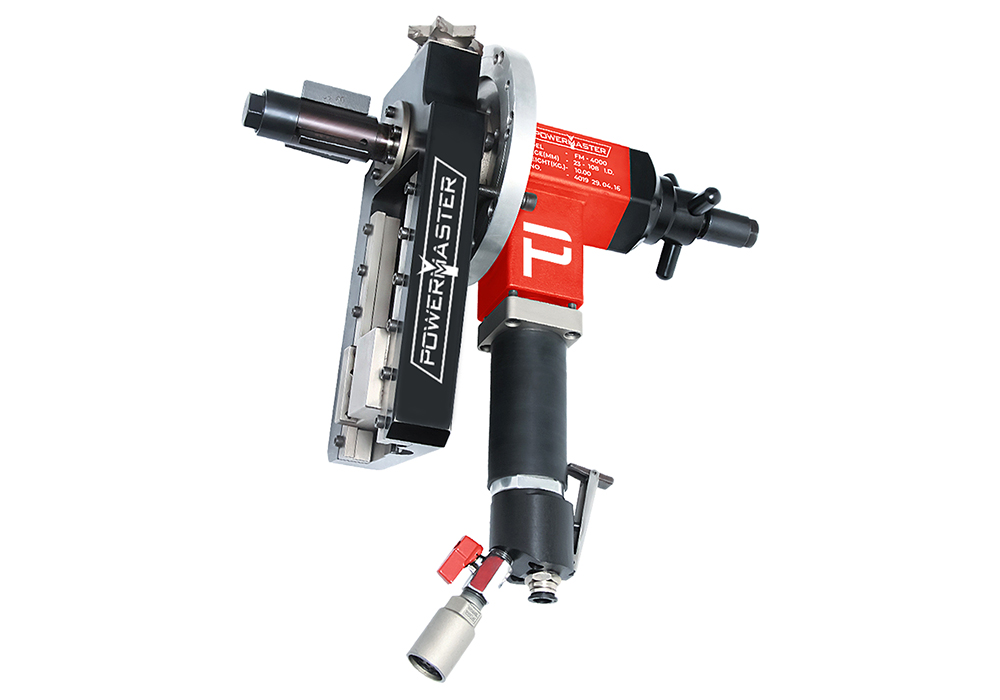

FF-4000 PNEUMATIC

flange-pipe-facing-machine-flange-facer-ff-4000

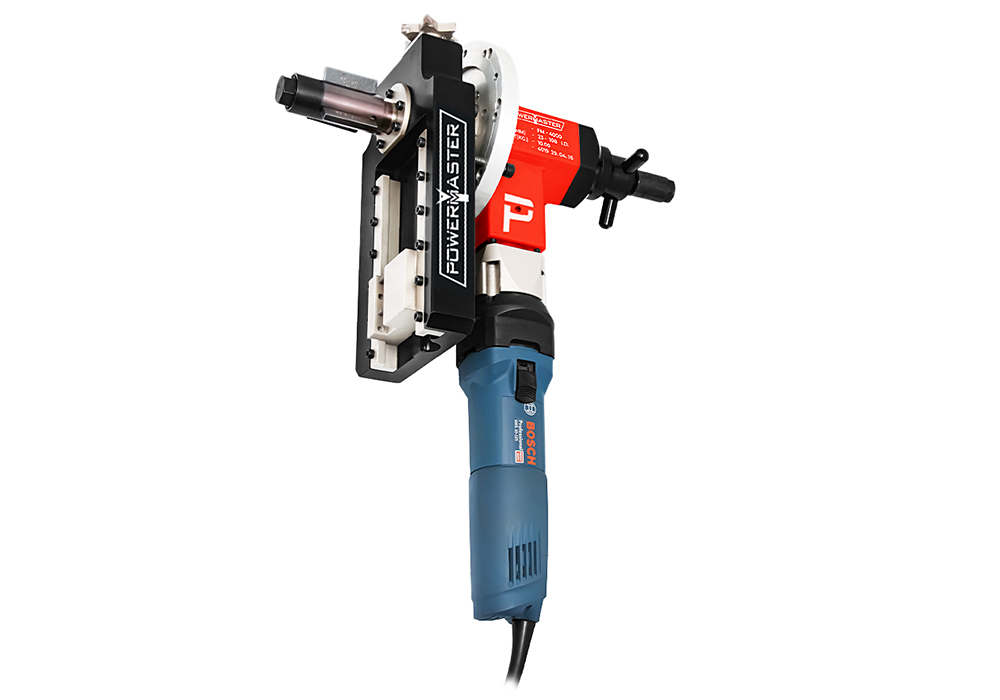

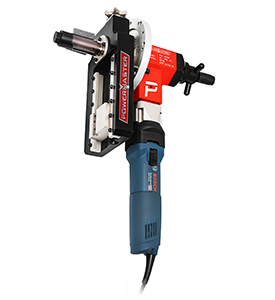

FF-4000 ELECTRIC

Features of Flange / Pipe Facing Machine Flange Facer - FF-4000

flange-pipe-facing-machine-flange-facer-ff-4000

flange-pipe-facing-machine-flange-facer-ff-4000

It is quick and simple to remachine damaged flange faced and raised faced ID mount Flange facing machine. This design is based on our FM-4000 which is converted to Flange facer using special attachment.

Techinical Specification

Drive Pneumatic Electric
Locking Range mm (inch) 35 - 104 (1.3/8”- 4”) 35 - 104 (1.3/8”- 4”)
Application Range mm (inch) 35 - 356 (1.38”- 14”) 35 - 356 (1.38”- 14”)
Ideal Speed RPM 70 75
Torque Speed Rate/Pin mm (inch) 0.16 (0.0062) 0.16 (0.0062)
Feeding Stroke mm (inch) 17 (0.67") 17 (0.67")
Pneumatic Power HP 0.83 -
Air Consumption cfm 55 -
Air Pressure Bar (psi) 6.2 (90) -
Electric Power watts - 1000
Voltage V - 110 / 220
Net Weight kg (lb) 14.2 (31.3) 15.3 (33.7)
