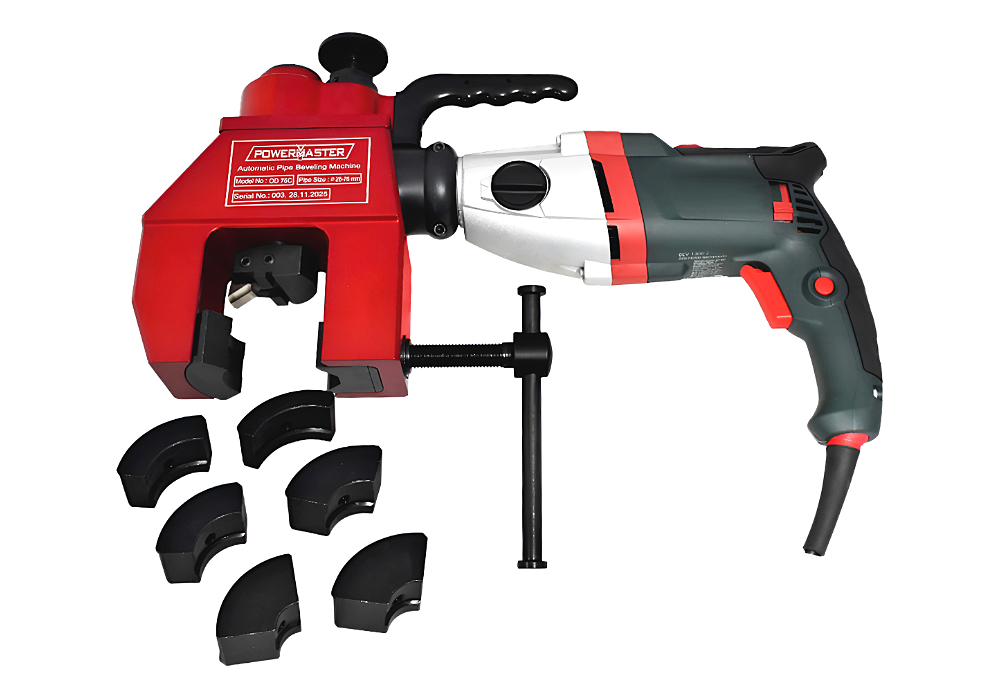

OD-Mounted Auto-Feed Pipe Beveling Machine
The POWERMASTER Auto-Feed Pipe Beveling Machine is powered by a high-performance German motor. Designed for demanding industrial environments, it is ideal for power plant pipeline installations, chemical processing facilities, and shipbuilding. The machine excels in pipeline prefabrication as well as low-clearance on-site machining, including thermal power auxiliary systems, boilers, pipes, and valve maintenance.
Features
- OD-Mounted
- Compact design, good rigidity
- Light weight
- Tool feed/back automatically
- Adjustable speed
- High quality German motor
- Ingenious centering device, easy for process various of pipe size
Technical Details
| Model | P-2864E/AF | P-2864P/AF | P-4276E/AF | P-4276P/AF |
|---|---|---|---|---|
| DRIVEN | Electric | Pneumatic | Electric | Pneumatic |
| POWER SUPPLY | 220-230V 1PH 50/60HZ | 900L/Min@0.6Mpa | 220-230V 1PH 50/60HZ | 900L/Min@0.6Mpa |
| MOTOR POWER | 1300W | 1HP | 1300W | 1HP |
| WORKING RANGE (OD) | 28-63mm | 28-63mm | 42-76mm | 42-76mm |
| CLAMPING PAD SIZE | 28, 32, 42, 45, 48, 51, 54, 57, 60, 63.5 | 42, 45, 48, 51, 54, 57, 60, 63.5, 68, 76 | ||
| WALL THICKNESS | 12mm | 12mm | 12mm | 12mm |
| ROTATION SPEED | 70 - 175RPM | 70-175RPM | ||
| WORKING WEIGHT | 8kgs | 8.5kgs | 8.5kgs | 9kgs |
