Tube End Facing Machines - 4500

Tube End Facing Machines - 4500

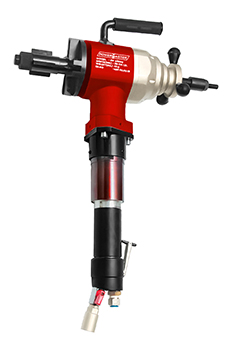

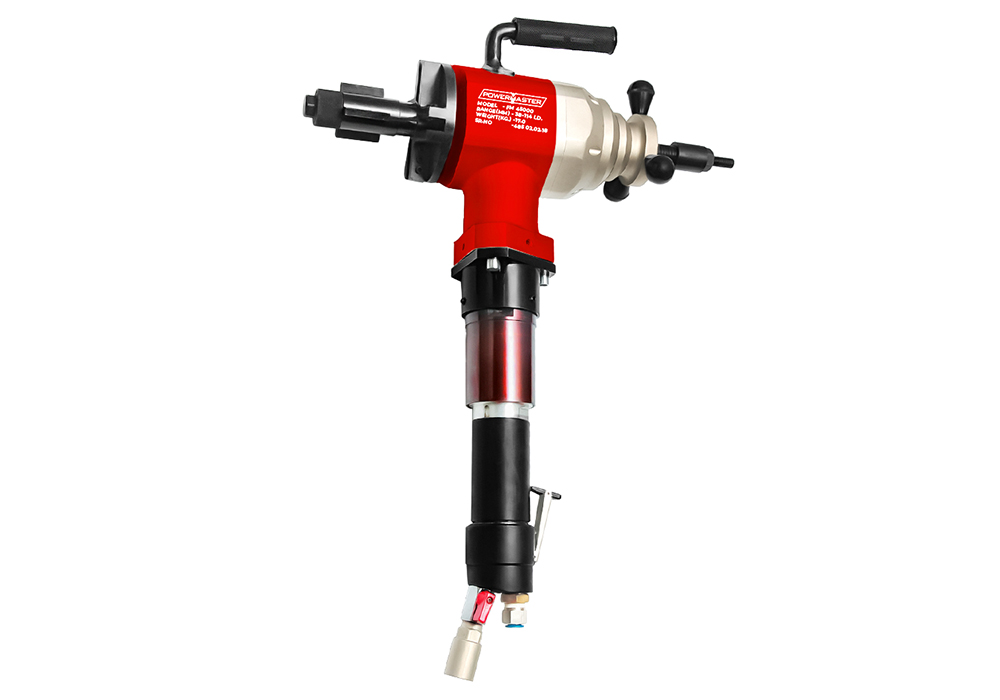

FMP-4500 Pneumatic

Tube End Facing Machines - 4500

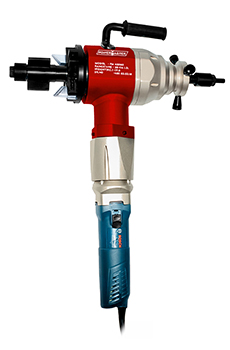

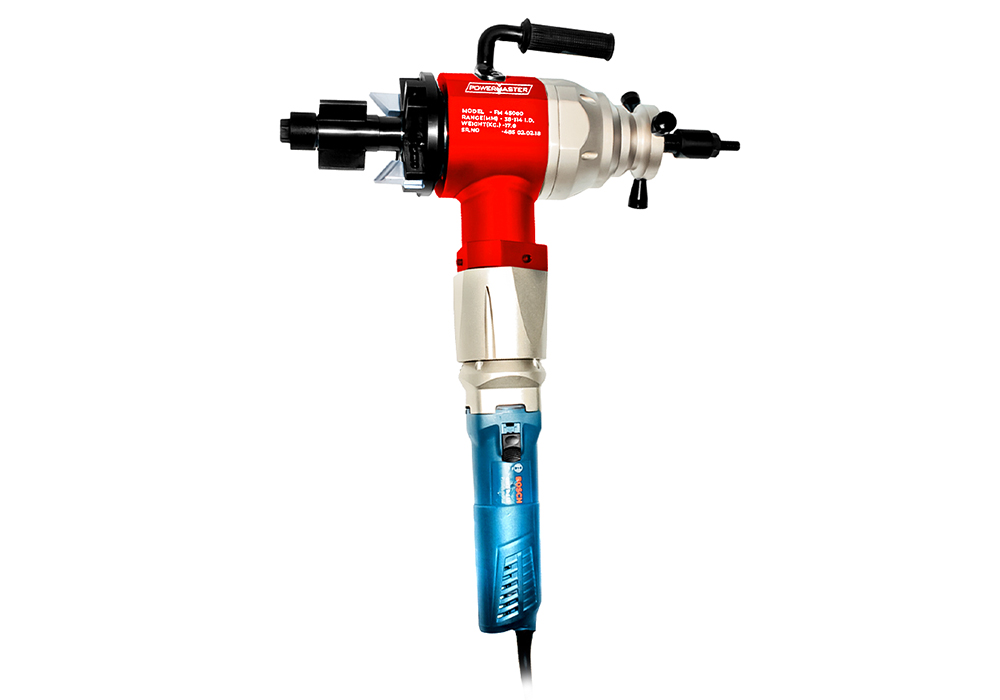

FME-4500 Electric

Tube End Facing Machines - 4500

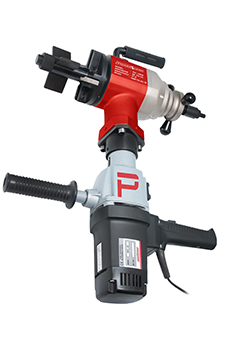

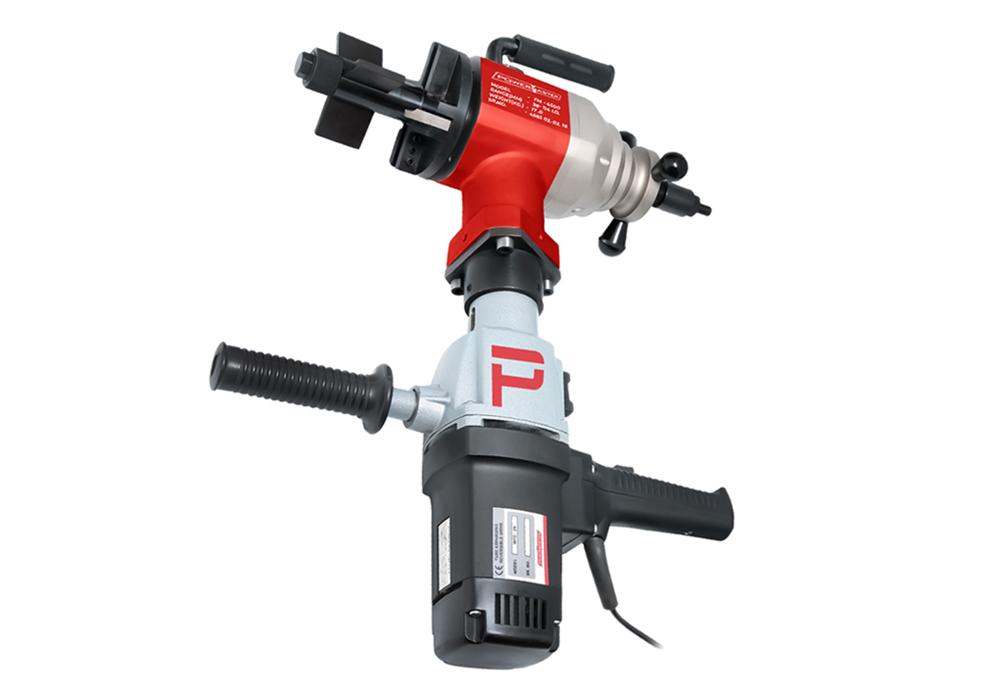

FME-4500 Electric - HD (Heavy Duty)

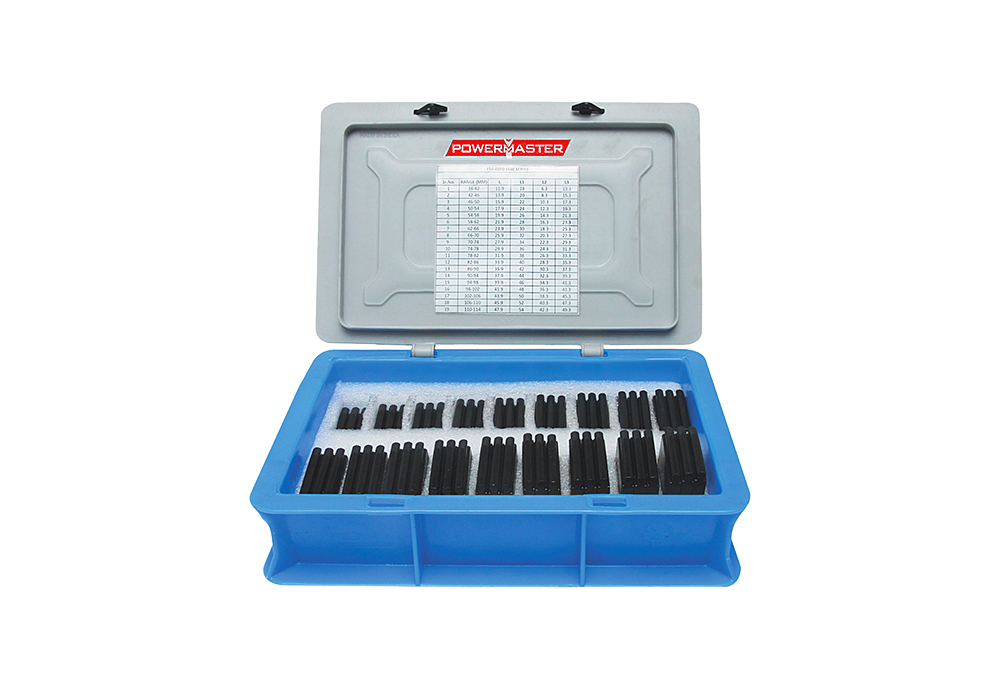

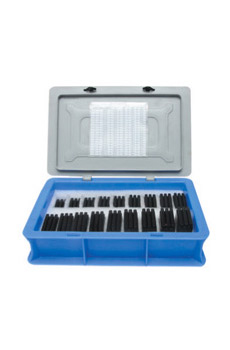

Jaw Set

Jaw Set

Tube End Facing Machines - 4500 Cutting Bits

The FM-4500 is a heavy duty machine designed to bevel, face, and prepare weld edges. Modular and ergonomic design. It’s suitable for tubes and pipe in the size range of 39mm - 104mm.

Drive Pneumatic Electric Electric-HD
Locking Range mm (inch) 39-104 (1.9/16”- 4.1/16”) 39 - 104 (1.9/16”- 4.1/16”) 39 - 104 (1.9/16”- 4.1/16”)
Idal Speed RPM 70 70 115
Torque Nm (lbf.ft) 180 (132.76) 245 (180.70) 265 (195.45)
Feeding Stroke mm (inch) 40.5 (1.9/16”) 40.5 (1.9/16”) 40 (1.9/16”)
Pneumatic Power HP 1.33 - -
Air Consumption cfm 50-60 - -
Air Pressure Bar (psi) 6 (90) - -
Electric Power watts - 1020 1800
Voltage V - 110/220 V 110/220 V
Net Weight kg (lb) 17.0 (37.47) 18.0 (39.70) 27.0 (59.52)
