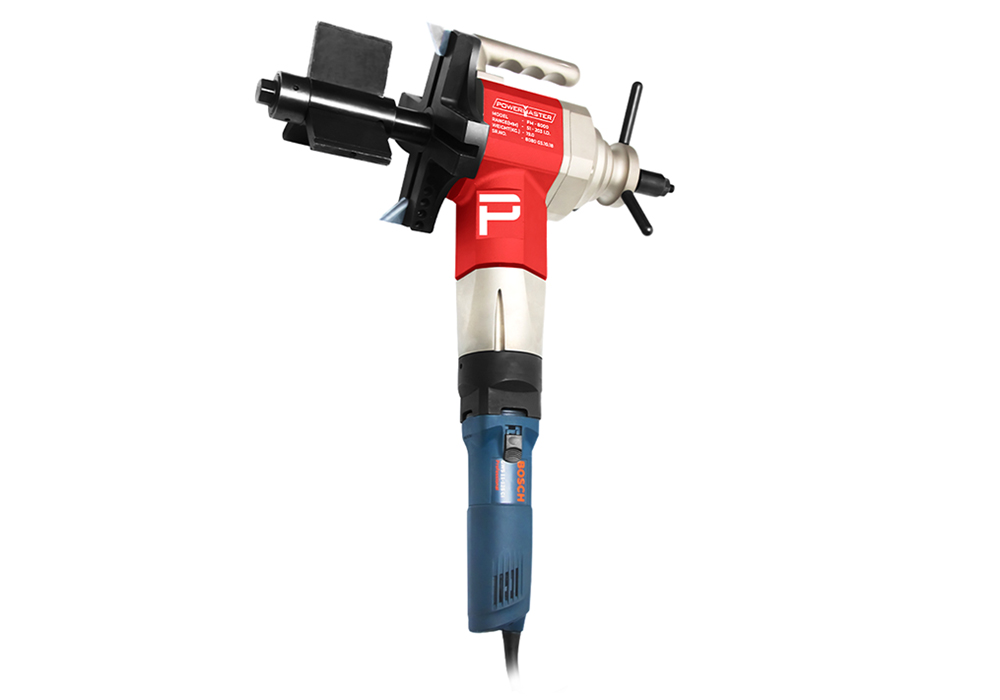

Tube End Facing Machines - 8000 |
|
 |
 |
 |
 |
| |

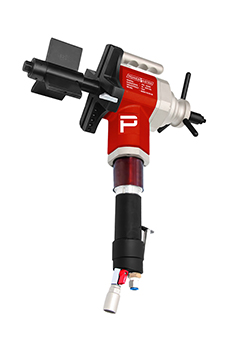

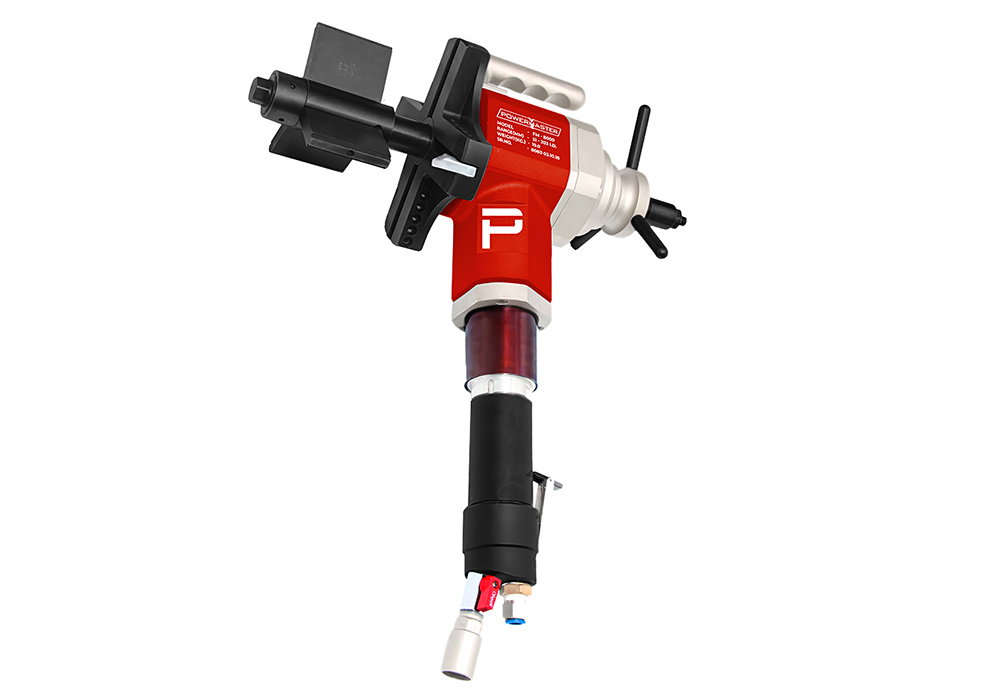

| FMP-8000 Pneumatic |

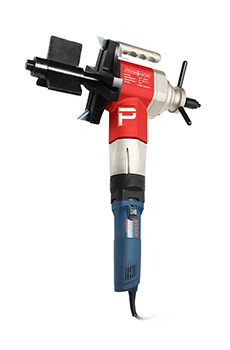

FME-8000 Electric |

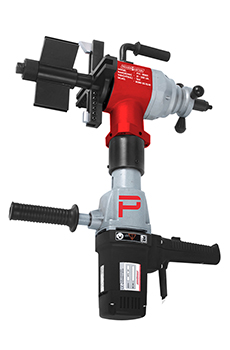

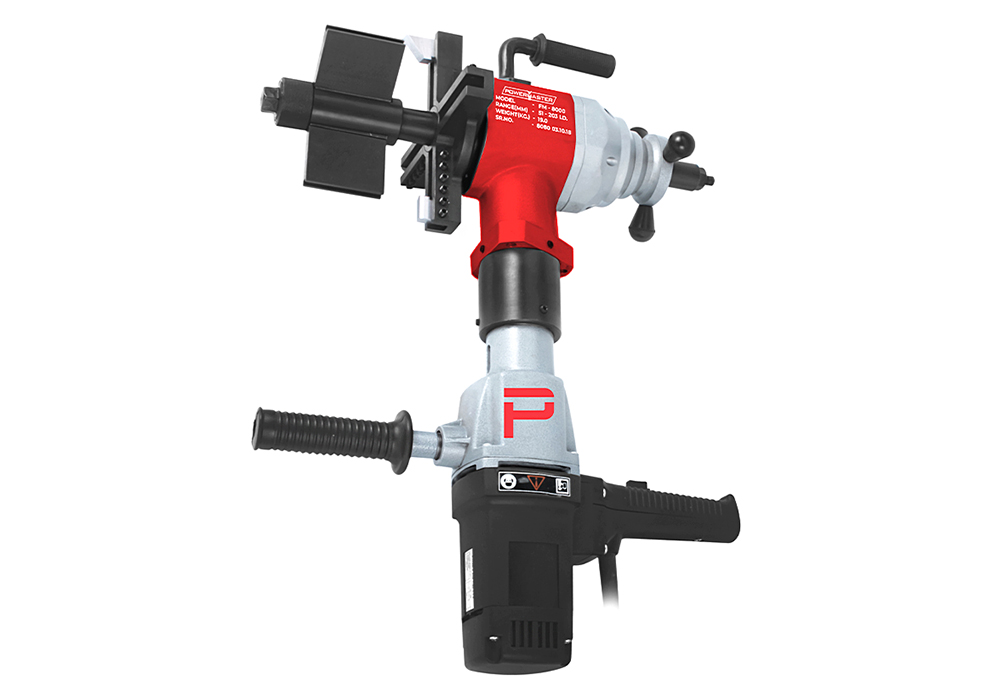

FME-8000 Electric - HD (Heavy Duty) |
| |
 |
| |

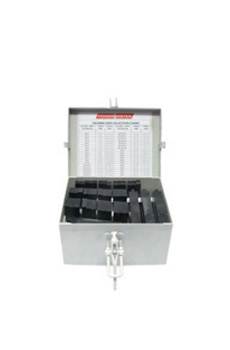

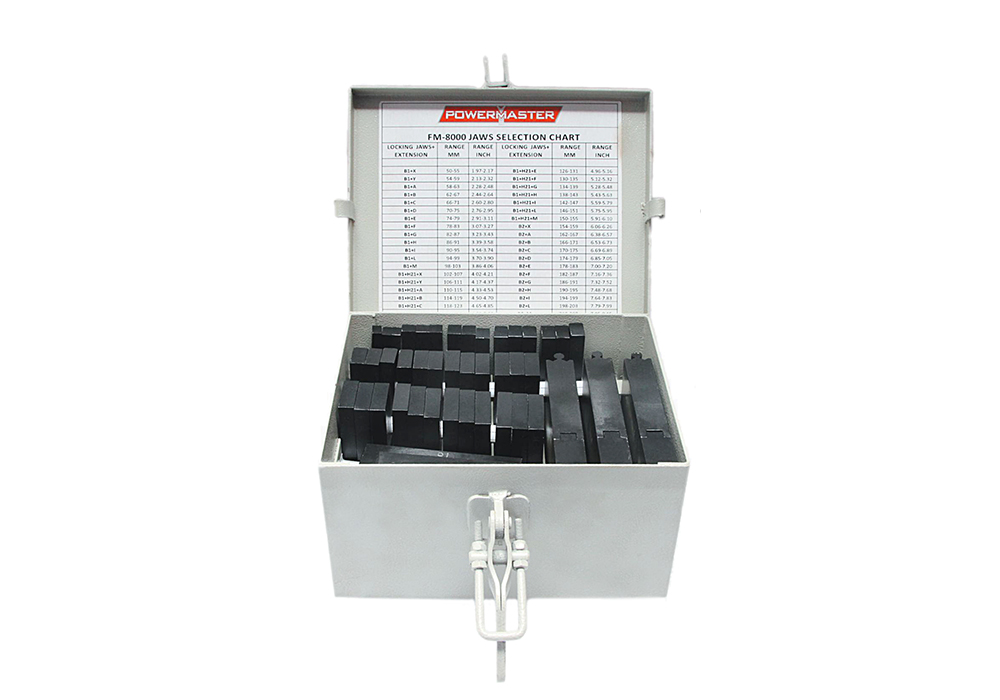

| Jaw Set |
| |
 |
| |
|
|
|
|
| |
| The FM-8000 is a modular and ergonomic designed machine that develops high torque to suit the toughest working conditions. Suitable for a wide range of tube and pipe internal diameters. |
| |
| Drive |
Pneumatic |
Electric |
Electric-HD |
| Locking Range mm (inch) |
49 – 203 (2” – 8”) |
49 – 203 (2” – 8”) |
49 – 203 (2” – 8”) |
| Ideal Speed RPM |
52 |
34 |
40 |
| Torque Nm (lbf.ft) |
250 (184.40) |
264 (194.70) |
295 (217.60) |
| Feeding Stroke mm (inch) |
40.5 (1.9/16”) |
40.5 (1.9/16”) |
40.5 (1.9/16”) |
| Pneumatic Power HP |
1.80 |
- |
- |
| Air Consumption cfm |
60-65 |
- |
- |
| Air Pressure Bar (psi) |
6 (90) |
- |
- |
| Electric Power watts |
- |
1100 |
1800 |
| Voltage V |
- |
110 / 220 V |
110 / 220 V |
| Net Weight kg (lb) |
21 (46.30) |
22 (48.50) |
30 (66.10) |
|
| |
