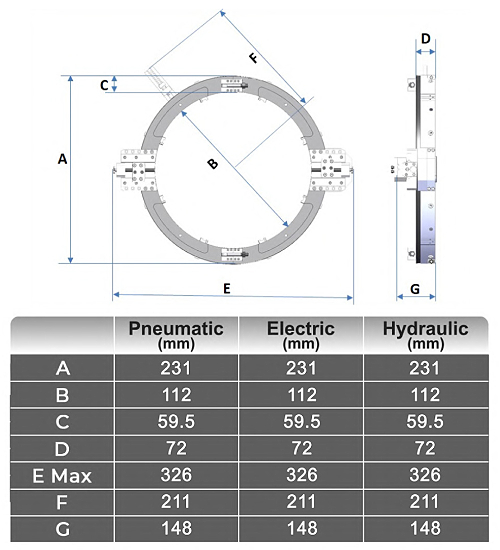

Tube / Pipe Bevelling and Cutting Split Frame Machine- SF-0104
SF-0104 Pneumatic
SF-0104 Electric
SF-0104 Hydraulic
POWERMASTER SF-0104 is a externally mounted, split frame design, light and portable cold cutting machine. A rugged and slim machine suitable for tubes and pipes in the size range of 25.4 mm to 101.6 mm in external diameter. It is a new generation pipe cutting and bevelling machine designed for piping industry.
Technical Specification
| Drive | Unit | Pneumatic | Electric | Hydraulic |
|---|---|---|---|---|
| Clamping Range | Inch | 1-4 | 1-4 | 1-4 |
| mm | 25.4-101.6 | 25.4-101.6 | 25.4-101.6 | |
| Tool Holder Stroke | Inch | 2 | 2 | 2 |
| Radial Feed Per Revolution | Inch | 0.0028 | 0.0028 | 0.0028 |
| mm | 0.072 | 0.072 | 0.072 | |
| Ring Assembly Weight | Kg | 5 | 2.8 | 8.5 |
| Tool Holder Weight | Kg | 2 | 2 | 2 |
| Drive Assembly Weight | Kg | 7 | 8 | 7 |
| IDLE Speed | RPM | 46 | 50 | 47 |
| Motor Power | 3.5 HP | 1.2 KW | 7.5 HP | |
| Air Supply | 6Bar @98CFM | - | - | |
| Voltage | V | - | 230 | 415 |
