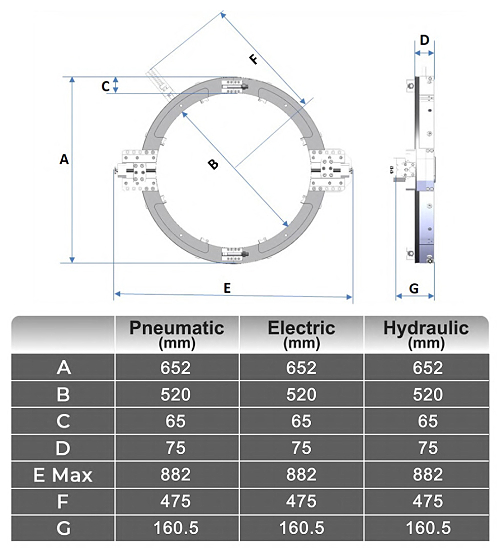

Tube / Pipe Bevelling and Cutting Split Frame Machine- SF-1420
SF-1420 Pneumatic
SF-1420 Electric
SF-1420 Hydraulic
POWERMASTER SF-1420 is a externally mounted, split frame design, light and portable cold cutting machine. A rugged and slim machine suitable for tubes and pipes in the size range of 355.6 mm to 508.0 mm in external diameter. It is a new generation pipe cutting and bevelling machine designed for piping industry.
Technical Specification
| Drive | Unit | Pneumatic | Electric | Hydraulic |
|---|---|---|---|---|
| Clamping Range | Inch | 14-20 | 14-20 | 14-20 |
| mm | 355.6-508.0 | 355.6-508.0 | 355.6-508.0 | |
| Tool Holder Stroke | Inch | 4 | 4 | 4 |
| Radial Feed Per Revolution | Inch | 0.0028 | 0.0028 | 0.0028 |
| mm | 0.072 | 0.072 | 0.072 | |
| Ring Assembly Weight | Kg | 42 | 42 | 42 |
| Tool Holder Weight | Kg | 4.5 | 4.5 | 4.5 |
| Drive Assembly Weight | Kg | 16 | 23 | 9 |
| IDLE Speed | RPM | 12 | 13 | 11 |
| Motor Power | 3.5 HP | 2.8 KW | 7.5 HP | |
| Air Supply | 6Bar @90CFM | - | - | |
| Voltage | V | - | 230 | 415 |
