Tube Pipe Bevelling and Cutting Split Frame Machine Sf-4854

Tube Pipe Bevelling and Cutting Split Frame Machine Sf-4854

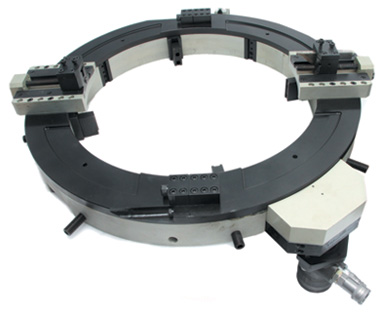

SF-4854 Hydraulic

Externally mounted SF-4854 is a split frame, clamshell type light and portable design. A rugged and slim machine suitable for tubes and pipes in the size range of 1219.2 mm to 1371.6 mm in external diameter. It is a new generation heavy duty facing, bevelling and cutting machine designed for the Piping industry.

Tube Pipe Bevelling and Cutting Split Frame Machine Sf-4048

Techinical Specification

Drive Pneumatic Electric Hydraulic
Locking Range mm (inch) 1219.2-1371.6 (48” - 54”) 1219.2-1371.6 (48” - 54”) 1219.2-1371.6 (48” - 54”)
Idle Speedrpm 8 7 7
PowerHP/Watts 4.2 3.5/2600 7.5 HP(3 PHASE)
Air Consumption cfm 100/110 - -
Air/Oil PressureBar (psi) 6.2 (90) - 100 bar
VoltageV - 230 415
Machine Weight kg (lb) 466 (1027) 466 (1027) 466 (1027)
