Bolting Tools >> Hydraulic Torque Wrenches
Hydaulic Torque Wrenches, Hydraulic Wrench, Torque Wrenches, Hydaulic Torque Wrench, Hydraulic Wrench, TU Series  Hydaulic Torque Wrenches, Torque Wrenches, TX Series Hydaulic Torque Wrenches, Hydaulic Torque Wrenches, Torque Wrenches, Hydraulic Wrench, Hydraulic Bolting, Hydaulic Torque Wrenches, Bolting Tools

Hydaulic Torque Wrenches, Hydraulic Wrench, Torque Wrenches, Hydaulic Torque Wrench, TU Series Hydaulic Torque Wrenches, TX Series Hydaulic Torque Wrenches, Hydraulic Bolting, Bolting Tools  Hydraulic Torque Wrenches

TU Series Specifications

Hydaulic Torque Wrenches, Hydraulic Wrench, Torque Wrenches, Hydaulic Torque Wrench, TU Series Hydaulic Torque Wrenches, TX Series Hydaulic Torque Wrenches, Hydraulic Bolting, Bolting Tools
live video
Model No. TU-2 TU-3 TU-7 TU-11 TU-27 TU-60
Square Drive 3/4" 1" 1.1/2" 1.1/2" 2.1/2" 2.1/2"
Min. Torque Kg-m (Ft-/Lbs) 17(127) 45(330) 102(740) 152(1,100) 376(2,720) 801(5,800)
Max. Torque Kg-m (Ft-/Lbs) 175(1,270) 460(3,330) 1020(7,400) 1520(11,010) 3760(27,200) 8018(58,000)
Output Accuracy +/-3% +/-3% +/-3% +/-3% +/-3% +/-3%
Repeatability 100% 100% 100% 100% 100% 100%
Duty Cycle 100% 100% 100% 100% 100% 100%0)
Tool Weight Kgs/(Lbs) 1.77/(3.90) 4.09/(9.00) 8.64/(19.00) 13.18/(29.00) 31.81/(70.00) 59.00/(130.00)

TU Series Features

TU Square Drive - The Performer


Tensioners...Impact Wrenches...

Nut Runners...

are no match for

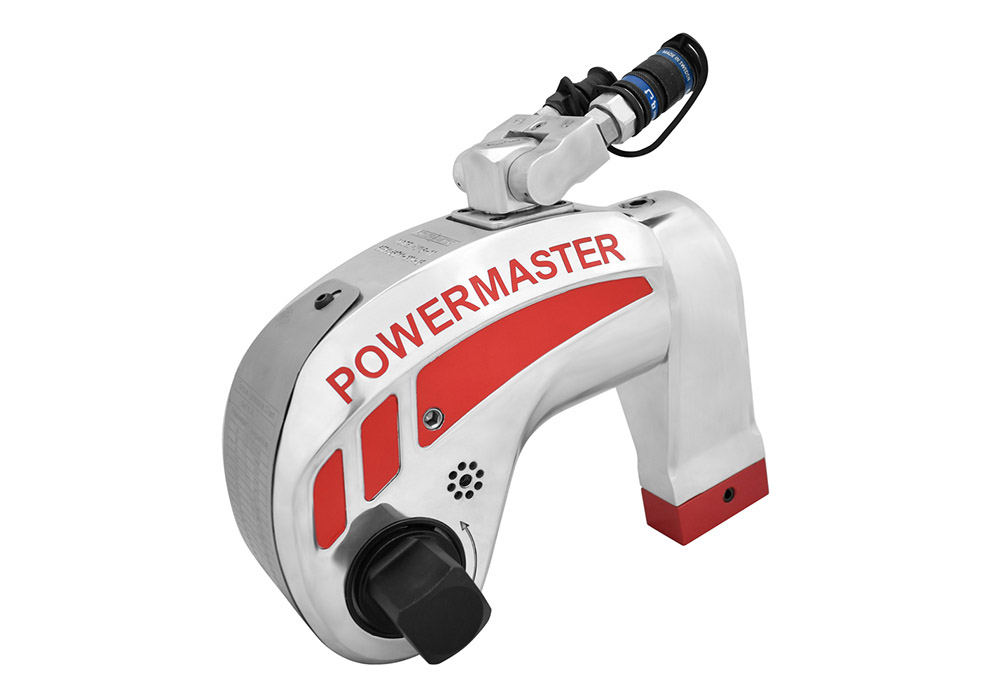

A TU Hydraulic Torque Wrenches on

any application !!

Other Hydraulics Torque Wrenches manufacturers?

Not a chance!!
1 Patented Mono-Body Housing A Hydraulic Torque Wrenches UP exclusive!!
2 Balanced Drive Rod Side load free piston movement.
3 Never-Lock Drive Pawl Ensures tool will NEVER lock up.
4 Anti-Back Lash Mechanism Provides hands free operation.
5 Laser Engraved Hydraulic Torque Wrenches Chart No more searching for charts.
6 Multi-Tooth Ratchet Allows for 27 degree hydraulic torque wrenches stroke accuracy.
7 One Piece Drive Plate Robust alloy provides for small nose radius.
8 Push-Through-Drive Simply push to switch from loosen to tighten.
9 Single Seal Piston Assures extended maintenance free operation.
10 Direct Housing Reaction Allows use of tool without reaction arm.
11 Steel Reaction Boot Field replaceable feature protects reaction arm.
12 Long Length Reaction Arm Allows for reaction on all applications.
13 Reaction Arm Release Button Protected within reaction arm housing.
14 360 x 360 Swivel Allows hose to be cleared on all applications.
15 No-Drip Quick Connect Couplers Assures easy and safe operation.
16 Steel Alloy Piston Robust composition allows for longer operation cycle.


TX Series Specifications
Hydaulic Torque Wrenches, Hydraulic Wrench, Torque Wrenches, Hydaulic Torque Wrench, TU Series Hydaulic Torque Wrenches, TX Series Hydaulic Torque Wrenches, Hydraulic Bolting, Bolting Tools Hydaulic Torque Wrenches, Hydraulic Wrench, Torque Wrenches, Hydaulic Torque Wrench, TU Series Hydaulic Torque Wrenches, TX Series Hydaulic Torque Wrenches, Hydraulic Bolting, Bolting Tools
Model No. TX-2 TX-3 TX-8 TX-16 TX-32
Tool Hex          From 19mm / 3/4" 25mm / 1" 50mm / 1.7/8" 65mm / 2.5/8" 80mm / 3 .1/8"
                          To 60mm / 2.3/8" 80mm / 3.1/8" 105mm / 4" 115mm / 4.5/8" 155mm / 6/.1/8"
Min Torque Kg-m (Ft-/Lbs) 26 (192) 54 (395) 115 (830) 215 (1,560) 445 (3,220)
Max. Torque Kg-m (Ft-/Lbs) 260 (1,928) 540 (3,950) 1192 (8,630) 2293 (16,600) 4924 (35,650)
Output Accuracy +/-3% +/-3% +/-3% +/-3% +/-3%
Repeatability 100% 100% 100% 100% 100%
Duty Cycle 100% 100% 100% 100% 100%
Corrosion Protection Standard
Cylinder Weight Kgs/(Lbs) 1.59 / (3.50) 2.73 / (6.00) 5.32 / (11.70) 7.27 / (16.00) 11.82 / (26.00)
Link Weight Kgs/(Lbs) 1.09 / (2.40) 2.45 / (5.40) 5.41 / (11.90) 9.55 / (21.00) 13.18 / (29.00)
Tool Weight Kgs/(Lbs) 1.59 / (3.50) 3.45 / (7.60) 6.59 / (14.50) 12.73 / (28.00) 17.95 / (39.50)

TX Series Features

TX Low Profile - The Solution

Hydaulic Torque Wrenches, Hydraulic Wrench, Torque Wrenches, Hydaulic Torque Wrench, TU Series Hydaulic Torque Wrenches, TX Series Hydaulic Torque Wrenches, Hydraulic Bolting, Bolting Tools
1 Patented “Peanut Shaped Cylinder” Fit both the cylinder and link in confined areas.
2 Engagement Rod Automatically engages link on the first stroke.
3 Never-Lock Drive Pawl Ensures tool will NEVER lock up.
4 Multi-Tooth Ratchet Allows for 27 degree hydraulic torque wrenches stroke accuracy.
5 One Piece Drive Plate Robust alloy provides for small nose radius.
6 Link Pin One pin for link to cylinder engagement. No tools required.
7 In-Line Reaction Pad Assures torsion free reaction every time.
8 Steel Alignment Pin Assures equal load displacement between side plates.
9 Piston Tension O-Ring Tension locks piston seal into “Peanut” bore.
10 Completely Flat Design Cylinder and link width are equal for tight fits.
11 360 x 360 Swivel Allows hose to be cleared on all applications.
12 Teflon Piston Seal Patented technology provides years of maintenance free use.
13 Slider Prevents wear of piston or drive plate. Reduces costly repairs.


Quadra - Hydraulic Torque Wrenches System

Quadra-Hydraulic Torque Wrenches - Fast Accurate - Even Bolt Load

Hydaulic Torque Wrenches, Hydraulic Wrench, Torque Wrenches, Hydaulic Torque Wrench, TU Series Hydaulic Torque Wrenches, TX Series Hydaulic Torque Wrenches, Hydraulic Bolting, Bolting ToolsThe primary focus of the Quadra-Hydraulic Torque Wrenches System is to eliminate the common “Criss-Cross” bolt tightening pattern that causes constant crush or over hydraulic torque wrenches of gaskets. With the Quadra-Torque Wrenches System multi torque units are utilized along with our Quadra-Torque Hydraulic Pumps. Once the Hydraulic Torque Wrenches are in place a single operator can apply even load at the push of a button. The Quadra-Hydraulic Torque Wrenches System will evenly close the gap and apply equal hydraulic torque wrenches to ± 3% accuracy!


Bolting Services

Powermaster - Offers A Complete Hydraulic Bolting Service...

Powermaster Bolting Services offer the following advantages:

  • Safe: Powermaster supervisors ensure a trouble free job. Powermaster bolting technicians have undergone training from
    M/S TorcUP (USA) and our services meet MMS, USCG and DSHA regulations.

  • Fast: Skilled and experienced crew will allow the job to be completed faster and better than a ‘First Time’ crew.

  • Economical: Since most companies use hydraulic bolting tools for a small part of the year, in a lot of cases it does not justify the large investment needed to purchase the tools.

  • Time Savings: Since Powermaster carries a fleet of hydraulic bolting tools in its ISO-9002 certified facility, our crew can be on site and on the job in matter of days, versus the weeks and sometimes months it takes for a company to import and commission a new set of hydraulic bolting tools.

Rental Programs

For customers who do not have the need for Powermaster crew, they have the option of renting Powermaster tools at a nominal cost. Powermaster recommends an orientation of the use of its tools at its factory in Thane, Maharashtra, before the tools are sent out to the customer on rent. Please contact us for rental information and prices.


Power Pack

Quadra-Hydraulic Torque Wrenches - (4 Port)

       EP1000 - High Flow - High Speed for Heavy Duty Application

  • Quadra-Hydraulic Torque Wrenches Multi-Port Manifold (Max. 4 Ports).

  • Cool running continuous duty axial piston pump.

  • Single phase induction motor.

  • 115V and 230V available.

  • Starts under full load.

  • Runs on reduced voltage.

  • Quiet operation (approx. 80 dBA @ 10,000 PSI).

  • Rugged remote pendant to control motor and valve.

  • Easily adjustable pressure control knob.

  • Auto-dump relieves oil pressure from hoses.

  • Completely enclosed motor housing and electronics.

  • 2 Gallon oil reservoir.

  • Precise PSI/BAR pressure gauge.

  • Quick-connect no-drip couplers with safety locking collar.

  • Supplied with dual non-conductive high pressure hose with couplers.
Res vr.
Size
(Gal.)		 Valve Motor
Specifications		 Flow Rate @
115 VAC		 Weight
Control Type 600 psi 10,000 psi kg Ibs
2 Solenoid 3 Way/2 Pos. 1.5 HP Single Phase 11.47 lpm 0.82 Ipm 38 84
Retract pressure is preset at 1,300 PSI.

       AP1000 - High Flow - High Speed for Heavy Duty Application

  • Quadra-Hydraulic Torque Wrenches Multi-Port Manifold (Max. 4 Ports).

  • Cool running continuous duty axial piston pump.

  • Powerful 1.5HP industrial duty air motor.

  • Runs on 50 cfm / 80 PSI of air.

  • Quiet operation (approx. 80 dBA @ 10,000 PSI).

  • Rugged remote pendant to control motor and valve.

  • Easily adjustable pressure control knob.

  • Auto-dump relieves oil pressure from hoses.

  • Filter-lubricator for long trouble free operation.

  • 2 Gallon oil reservoir.

  • Precise PSI/BAR pressure gauge.

  • Quick-connect no-drip couplers with safety locking collar.

  • Supplied with dual non-conductive high pressure hose with couplers.
Res vr.
Size
(Gal.)		 Valve Motor
Specifications		 Flow Rate @
50 cfm/ 90psi		 Weight
Control Type 600 psi 10,000 psi kg Ibs
2 Solenoid 3 Way/2 Pos. 1.5 HP Rotary Air 9.83 lpm 0.82 Ipm 27 59
Retract pressure is preset at 1,300 PSI.
Standard Roll Bar Dimensions : 25-7/16” L x 20-1/2” H x 166-3/4” W
