Bolt Tensioner Test Bench

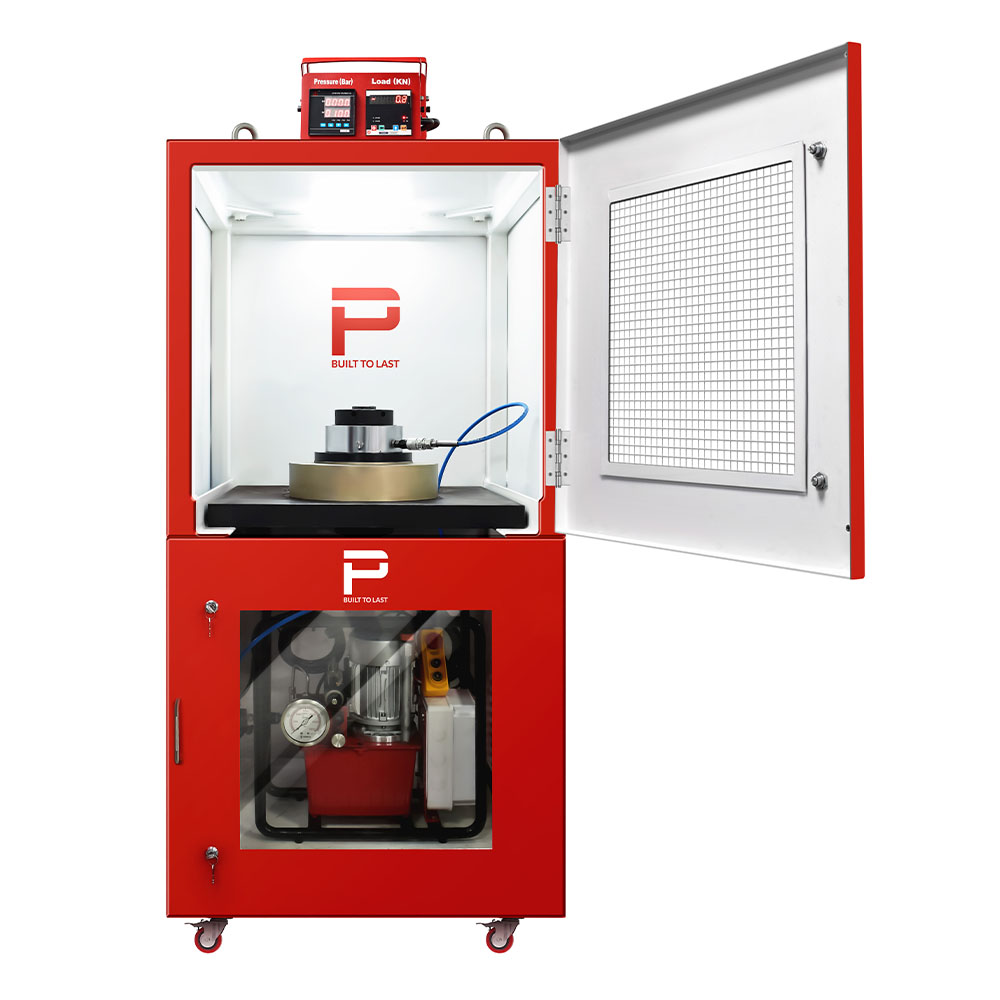

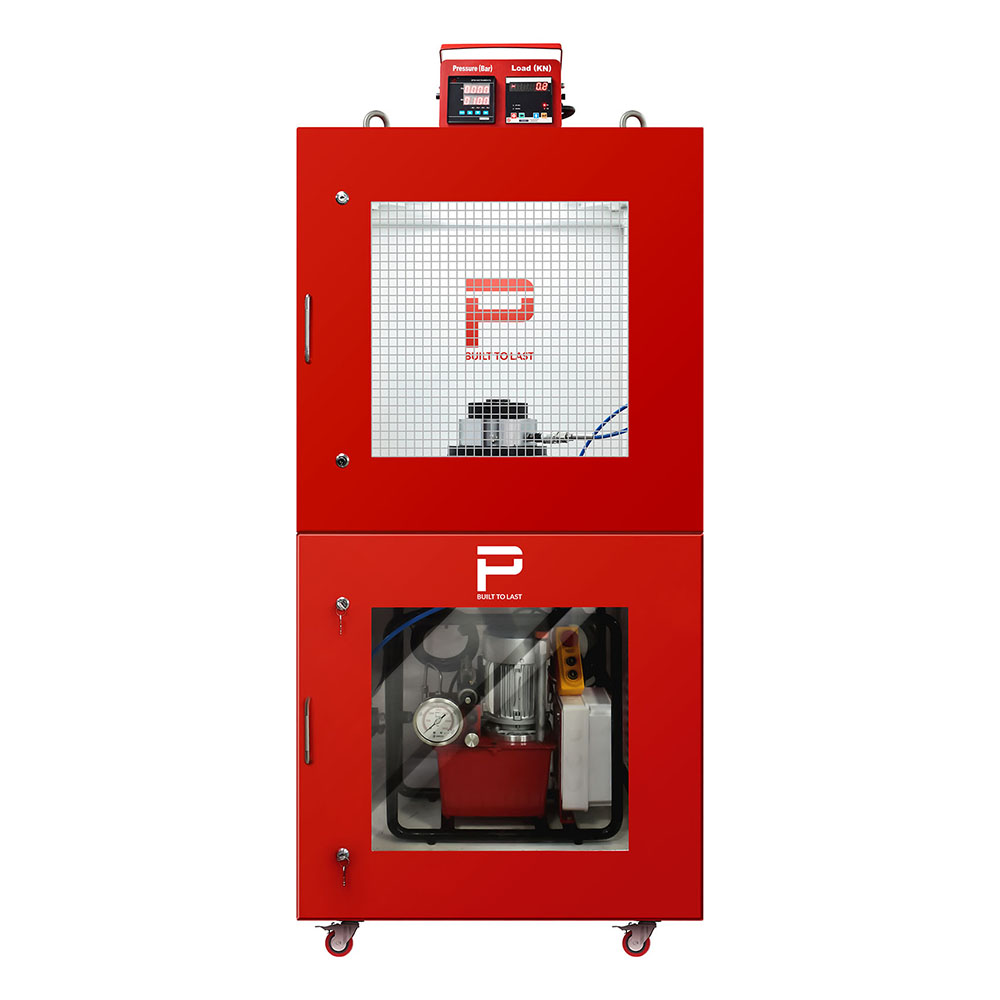

The POWERMASTER Bolt Tensioner Test Bench (BTTB) is a compact calibration and testing system designed for hydraulic bolt tensioners. It enables simultaneous measurement of hydraulic pressure and generated tensile load in a dedicated enclosed testing environment.
With an integrated hydraulic power unit and mobile design, the BTTB provides a practical solution for workshops, service centres and industrial maintenance facilities.

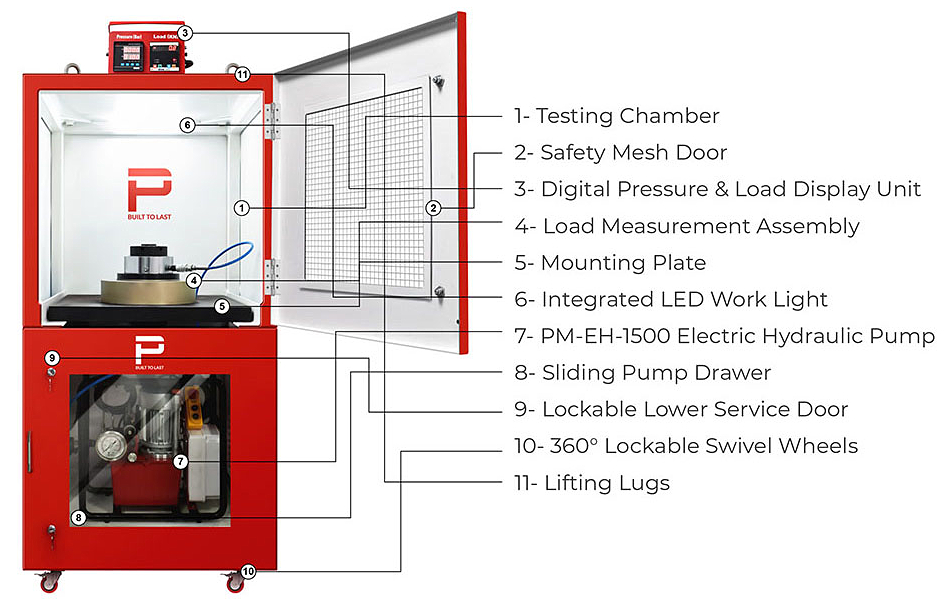

Technical Features
- 4000 kN (400 Ton) maximum testing capacity
- Suitable for hydraulic bolt tensioners from M20 (¾") to M100 (4")
- Simultaneous hydraulic pressure and tensile load measurement
- Integrated PM-EH-1500 electric hydraulic pump
- Portable digital display unit for pressure and load
- Dedicated calibration and testing chamber with LED illumination
- Lockable safety door with protective mesh
- Multiple mounting locations for different bolt tensioner sizes
- Sliding hydraulic pump drawer for easy access and maintenance
- Lockable lower service compartment
- 360º lockable swivel wheels for workshop
- Integrated lifting lugs for handling and Transportation
Technical Specifications
| Parameter | Specification |
|---|---|
| Maximum load capacity | 4000 kN (400 Ton) |
| Bolt size range | M20 (¾") to M100 (4") |
| Hydraulic pump | POWERMASTER PM-EH-1500 |
| Maximum pressure | 1500 bar |
| Hydraulic flow | 3.0 L/min (1st stage), 0.7 L/min (2nd stage) |
| Motor power | 0.7 kW |
| Power supply | 230 V AC, 50 Hz, single phase |
| Hydraulic reservoir | 5 litres |
| Display | Portable digital pressure & load display unit |
| Pressure indicator accuracy | ±0.25% |
| Load cell accuracy | ±1% |
| Dimensions (L x W x H) | 1106 x 902 x 1878 mm |
Applications
- Oil & Gas
- Petrochemical
- Refineries
- Power Generation
- Steel Plants
- Heavy Engineering
- Maintenance & Shutdown Services
- Calibration & Service Centres
