ELECTRO ETW-S Series with Data Logging

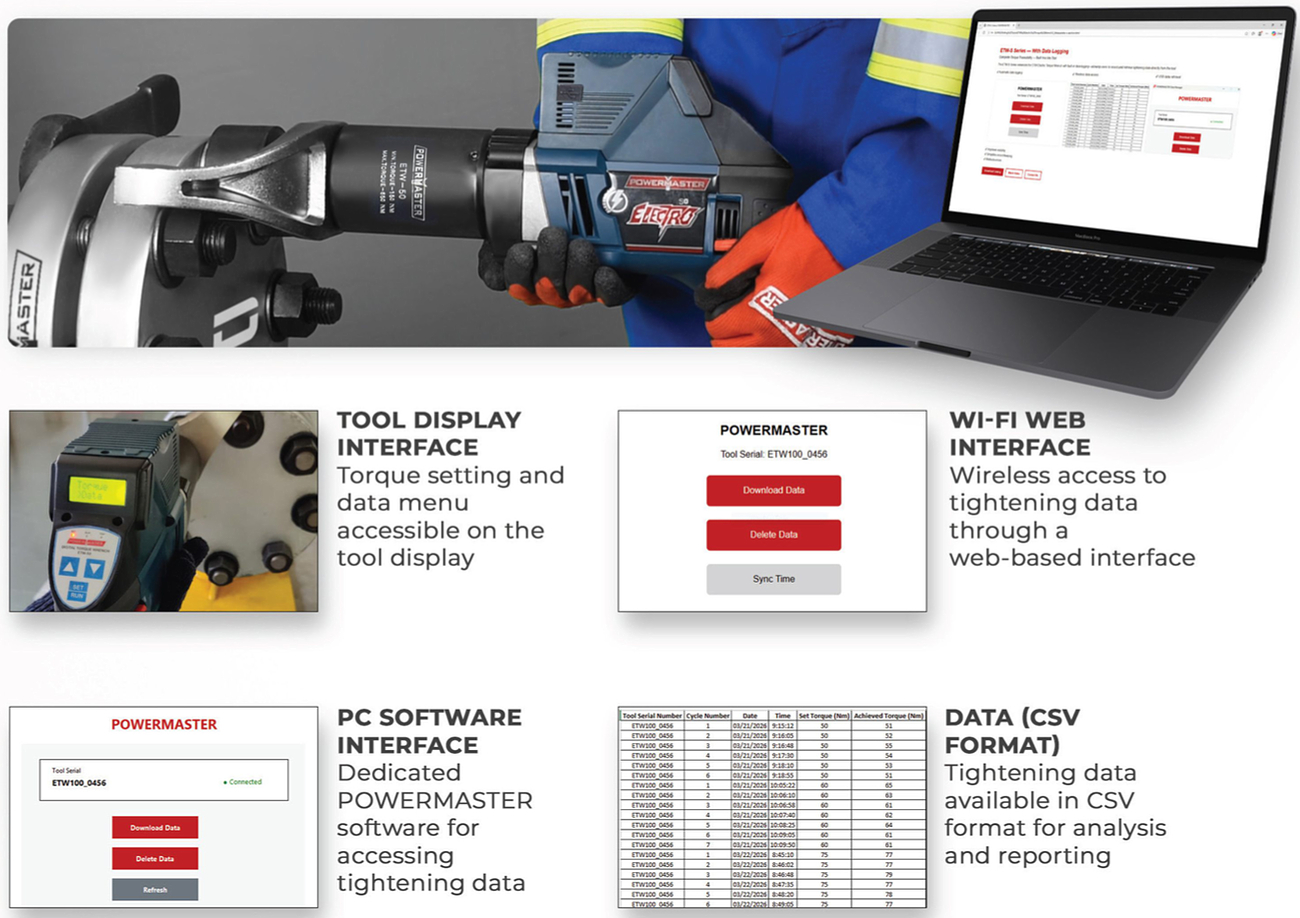

The ETW-S Electric Torque Wrench is a hand-held, non-impacting electrically driven power tool designed to apply controlled torque with integrated data logging. The POWERMASTER ETW-S series combines precise torque control with automatic recording of tightening data, enabling improved visibility and easy access to tightening records.
The tool features a digital interface with simple buttons to increase or decrease the torque value, displayed on the LCD for accurate setting and operation.
A practical and efficient solution for torque data recording, designed for real industrial environments.

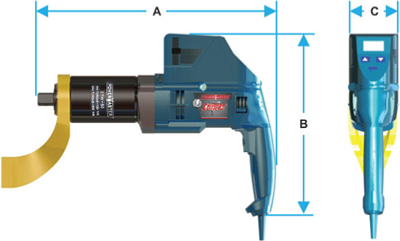

| Model No. | A (mm) | B (mm) | C (mm) |
|---|---|---|---|
| ETW-S - 50 | 380 | 270 | 85 |
| ETW-S - 100 | 394 | 270 | 85 |
| ETW-S - 200 | 445 | 270 | 90 |
| ETW-S - 300 | 465 | 270 | 90 |
Features
The ETW-S Series features :
- Soft start for smooth, controlled operation
- Automatic shut-off upon reaching the set torque
- Dedicated SET and RUN modes to prevent accidental operation
- Digital torque setting with precise increment and decrement control
- Automatic data logging of each tightening cycle
- Wireless data access via Wi-Fi through a browser-based interface
- USB connectivity for direct and reliable data transfer
Technical Details
| Model No. | Min. Torque | Max. Torque | Free Speed | Square Size | Weight with Reaction Arm | |||
|---|---|---|---|---|---|---|---|---|
| Lb.ft | Nm | Lb.ft | Nm | rpm | inch | kg | ||
| ETW-S-50 | 110 | 150 | 479 | 650 | 25 | 3/4 | 7.2 | |
| ETW-S-100 | 221 | 300 | 1106 | 1500 | 4 | 1 | 7.6 | |
| ETW-S-200 | 553 | 750 | 2212 | 3000 | 2.3 | 1 | 10.0 | |
| ETW-S-300 | 811 | 1100 | 3097 | 4200 | 1.6 | 1.1/2 | 13.0 | |
