Specific Application Bolt Tensioners

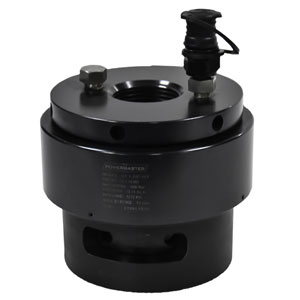

Dedicated Tensioner
Dedicated Tensioners are used for Specific Thread Size Application. In these tensioners the threaded piston acts as a puller too. These tensioners are specially designed for applications having space restrictions, both around and above the stud bolt.
Features
- Compact Design: The dedicated tensioner has a very compact dia for required load and size with. nominal requirement of operational height.
- Customised Stroke: Tool is available with standard 15mm and customised stroke as per application.
- Alloy Steel Construction: All parts are made from High Strength Alloy Steel for better strength and compact design.
- Delivery: In-house design and production facilities ensure faster customization and delivery.

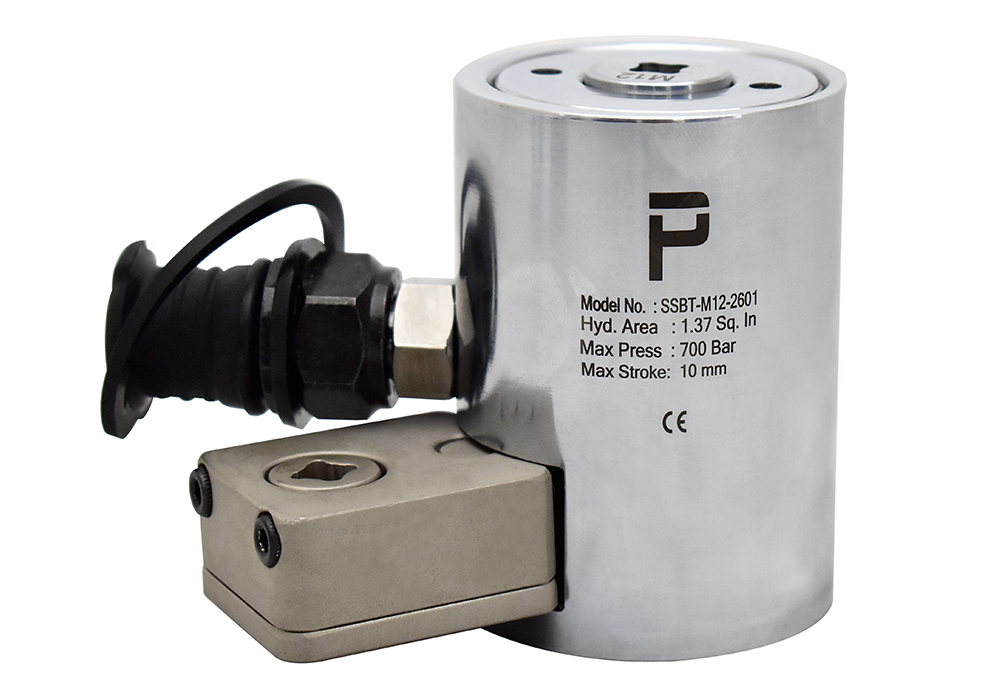

SSBT Series Single Stage Bolt Tensioners
The tensioner is a specially designed tool used for the accurate and controlled tensioning of M10 and M12 bolts in flange and similar applications. It is engineered to provide uniform load distribution, ensuring reliable joint integrity and reducing the risk of bolt loosening or failure
A key feature of this tensioner is its integrated bottom-mounted magnetic base, which allows the unit to securely attach to flange surfaces. This magnetic support ensures stable positioning of the tensioner during operation, minimizing movement and enabling hands-free alignment. As a result, the operator can achieve better accuracy and improved safety while performing tensioning tasks.
The tensioner is built with a compact and robust structure, making it suitable for use in confined spaces and demanding industrial environments. Its design simplifies installation and reduces setup time, thereby increasing operational efficiency and productivity
Additionally, the tool helps in achieving consistent and precise bolt tensioning, which is critical for maintaining proper sealing and structural performance of flanged joints. The durable construction ensures long service life with minimal maintenance requirements.
Overall, this bolt tensioner offers a combination of ease of use, stability, precision, and reliability, making it an effective solution for industrial fastening applications.
Multistage Tensioner
These tensioners are slimmer diameter tools generating high application load. Its unique design combines the load generated by two load cells, stacked together.
These tensioners are used for low clearance high load applications on application like Gearboxes, Gas-Turbines and Windmill applications etc.
These tensioners too have 1500 bar max operating pressure. These are available for sizes from 1” to 3” (24mm to 72mm for metric sizes) for different thread configurations. Optional Auto Spring Return Feature makes the operation very fast and easy.
Standard tools have geared Nut Driver to move the nut faster and with ease using standard 1/2” Square Drive Wrench. If required tool is supplied with standard nut driver.
All parts of these tensioners are made of Special High Strength Alloy Steel for better design and safety requirement.
These tools too are mostly made to customised requirement for specific application.
