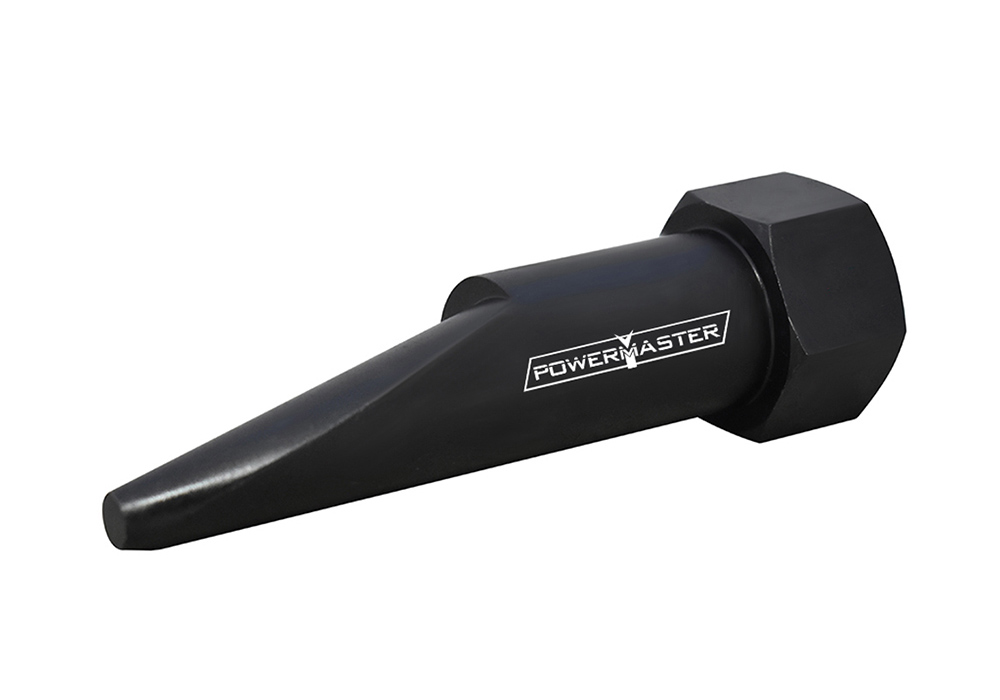

Flange Alignment Pins
Safe, fast, and effective solution for even the toughest flange alignment jobs. The tool's tapered shaft is a feature that eliminates the need for hammering and prying when lining up flange bolt holes. Flange aligning pin are made of steel and surface coated for rust protection and marked with both the bolt hole size and part number for easy identification.
Special Features
- Sold individually or in sets: sizes range from 1/2” to 2.5/8" hole diameter. The only flange alignment pin on the market that compensates for up, down and rotational misalignment.
- Flange alignment pins are made from 4140 heat treated steel and are then black oxide coated for corrosion resistance.
- Flange aligning pins are available in individually and in sets.
- Also available in extra 'L' versions (Extra Long).
Technical Details
| Bolt Hole Size inch |
Model No. | Overall Length | Weight | Model No. | Overall Extra Long Length | Weight |
|---|---|---|---|---|---|---|
| inch | kg | inch | kg | |||
| 1/2” | FAP-0.08 | 2.3/4” | 0.06 | FAP-0.08L | 5.3/4” | 0.28 |
| 5/8” | FAP-0.10 | 3.1/4” | 0.11 | FAP-0.10L | 6.1/4” | 0.34 |
| 3/4” | FAP-0.12 | 3.7/8” | 0.20 | FAP-0.12L | 6.7/8” | 0.40 |
| 7/8” | FAP-0.14 | 4.1/4” | 0.31 | FAP-0.14L | 7.1/4” | 0.51 |
| 1” | FAP-1.00 | 4.7/8” | 0.45 | FAP-1.00L | 7.7/8” | 0.68 |
| 1.1/8” | FAP-1.02 | 6” | 0.68 | FAP-1.02L | 9” | 1.02 |
| 1.1/4” | FAP-1.04 | 6.5/8” | 0.91 | FAP-1.04L | 9.5/8” | 1.36 |
| 1.3/8” | FAP-1.06 | 7.1/2” | 1.30 | FAP-1.06L | 10.1/2” | 1.90 |
| 1.1/2” | FAP-1.08 | 7.7/8” | 1.47 | FAP-1.08L | 10.7/8” | 2.30 |
| 1.5/8” | FAP-1.10 | 8.3/4” | 1.87 | FAP-1.10L | 11.3/4” | 2.70 |
| 1.3/4” | FAP-1.12 | 9.1/2” | 2.15 | FAP-1.12L | 12.1/2” | 3.17 |
| 1.7/8” | FAP-1.14 | 10.1/8” | 3.18 | FAP-1.14L | 13.1/8” | 3.70 |
| 2” | FAP-2.00 | 10.7/8” | 3.01 | FAP-2.00L | 13.7/8” | 4.50 |
| 2.1/8” | FAP-2.02 | 13.3/5” | 4.88 | FAP-2.02L | 16.3/5” | 5.90 |
| 2.3/8” | FAP-2.06 | 15” | 6.12 | FAP-2.06L | 18” | 7.65 |
| 2.5/8” | FAP-2.10 | 16” | 7.71 | FAP-2.10L | 19” | 10.17 |
| 2 of Each Size | Set with case | Extra Long - Set with case | ||
|---|---|---|---|---|
| Model No. | Weight | Model No. | Weight | |
| kg | kg | |||
| 3/4”, 7/8”, 1” | FAPS-01 | 3.63 | FAPS-01L | 5.89 |
| 3/4”, 7/8”, 1”, 1.1/8” | FAPS-02 | 4.99 | FAPS-02L | 8.16 |
| 3/4”, 7/8”, 1”, 1.1/8”, 1.1/4” | FAPS-03 | 6.80 | FAPS-03L | 9.52 |
| 3/4”, 7/8”, 1”, 1.1/8”, 1.1/4”, 1.3/8” | FAPS-04 | 9.98 | FAPS-04L | 14.51 |
