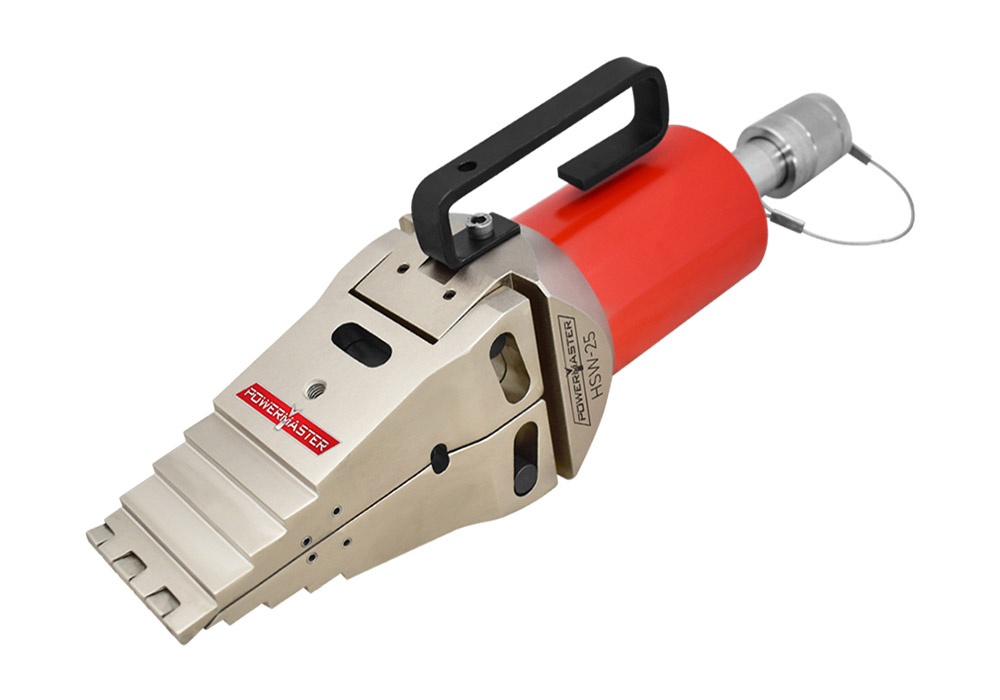

Hydraulic Spreading Wedge HSW-25

Hydraulic Spreading Wedge HSW-25
icon-ce

The Spreading Wedge has been developed as the simple cost-effective solution for flange spreading.

The Practical Solution

The HSW-25 can be used during
  • Commissioning
  • Construction
  • Routine Maintenance
  • Shutdowns / Outages
  • Testing
  • Valve Change-outs

Special Features

  • Only requires an access gap of 1/4”(6 mm).
  • Robust Light weight Tool-Just 10 kg(22 lbs).
  • 10,000 psi (700 bar) generates 14.7 to 25.0 tons spreading force.
  • Automatic Spring Return.
  • Locking at first step ensures no slippage increased safety.

Operating Benefits

  • Time / Cost Savings.
  • Lowest Weight / Lifting Force Ratio.
  • Precise.
  • Easy to set up and use.
  • Minimal Maintenance.
  • Fast for labour & time savings.
  • Use multiple units for greater lifting.

Mini Kit

  • 1 x Hydraulic Spreading Wedge Assembly
  • 1 x Safety Block
  • 1 x Instruction Manual
  • 1 x Carry Case
  • Gross Weight: 8 kg
HSW-25 Mini Kit

Maxi Kit

  • 2 x Hydraulic Spreading Wedge Assembly
  • 1 x 10,000 psi (700 Bar)- Two Stage Hydraulic Hand Pump
  • 2 x 10,000 psi (700 Bar) Hydraulic Hoses
  • 2 x Safety Block
  • 1 x Instruction Manual
  • 1 x Carry Case
  • 1 x 10,000 psi Twin Valve manifold
  • Gross Weight: 28 kg
HSW-25 Maxi Kit

Standard Kit

  • 1 x Hydraulic Spreading Wedge Assembly
  • 1 x 10,000 psi (700 Bar) Two Stage Hydraulic Hand Pump
  • 1 x 10,000 psi (700 Bar) Hydraulic Hoses
  • 1 x Safety Block
  • 1 x Instruction Manual
  • 1 x Carry Case
  • Gross Weight: 17 kg
HSW-25 Standard Kit

Stepped Block Accessory

  • 2 x Stepped Blocks
  • 2 x CSK M6 x 12mm
  • Countersunk Screws
  • 1 x M4 Allen Key
  • Sold as a separate item in pairs
HSW-25 Stepped Block Accessory
