Shaft Repair Tools

CLEANING ACCESSORIES ΒΌ" - 1" I.D.

U-Tube Tools

U-Tube Tools

These tools are used to clean tubes that have sharp bends in them. They consists of a brush or cobalt tip mounted on a piece of flexible shaft so the tool can negotiate the bend.

Cup Brush Tools - Brass or Stainless Steel

Cup Brush Tools - Brass or Stainless Steel

Tube I.D. Cup Brush Tools
mm inch
12.7-19.1 1/2-3/4 CBT-500B
12.7-19.1 1/2-3/4 CBT-500SS

Wheel Brush Tools - Brass or Stainless Steel

Wheel Brush Tools - Brass or Stainless Steel

Tube I.D. Wheel Brush Tools
mm inch
20.6-25.4 13/16-1 WBT-813B
20.6-25.4 13/16-1 WBT-813SS

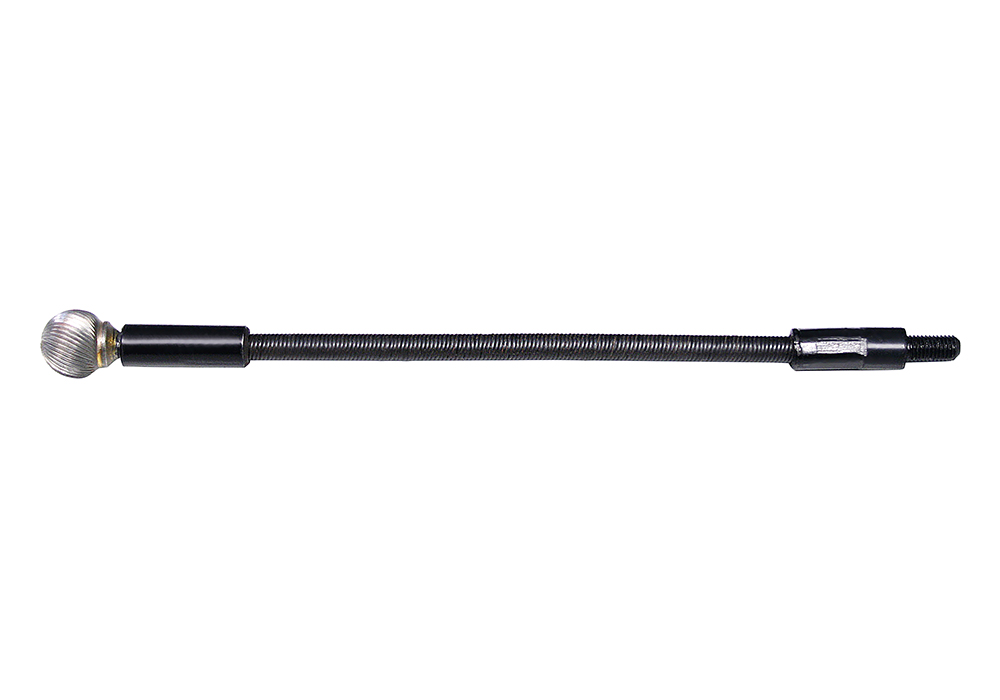

Cobalt Tip Tools

Cobalt Tip Tools

Tube I.D. Cobalt Tip Tools
mm inch
12.7 1/2 CTT-500
15.9 5/8 CTT-625

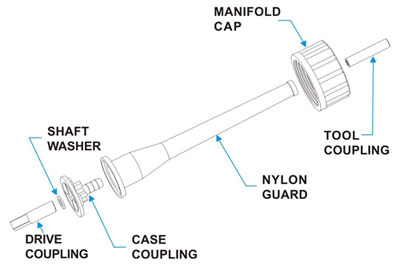

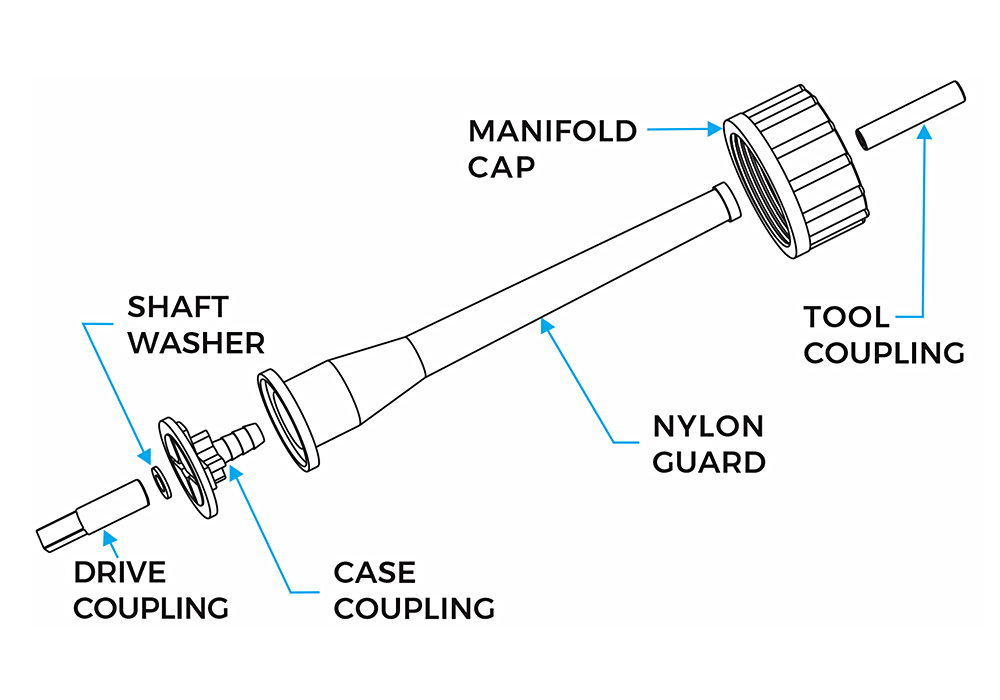

Shaft Replacement Couplings

Shaft Replacement Couplings

FLEXIBLE SHAFT REPAIR AND MAINTENANCE

For PFS-250, PFS-375, PFS-500, PFS-560 and PFS-750 Flexible Shafts.

Flexible Shaft Model PFS-250 PFS-375 PFS-500 PFS-560 PFS-750
Tool Coupling TC-250 TC-375 TC-500 TC-560 TC-750
Case Coupling CC-250 CC-375 CC-500 CC-560 CC-750
Manifold Cap MC-1 MC-1 MC-1 MC-1 MC-1
Shaft Washer 3/16x3/4 5/16x3/4 7/16x3/4 9/16x7/8 11/16x1
Drive Coupling DC-250 DC-375 DC-500 DC-560 DC-750
Nylon Guard NG-250 NG-250 NG-500 NG-500 NG-750

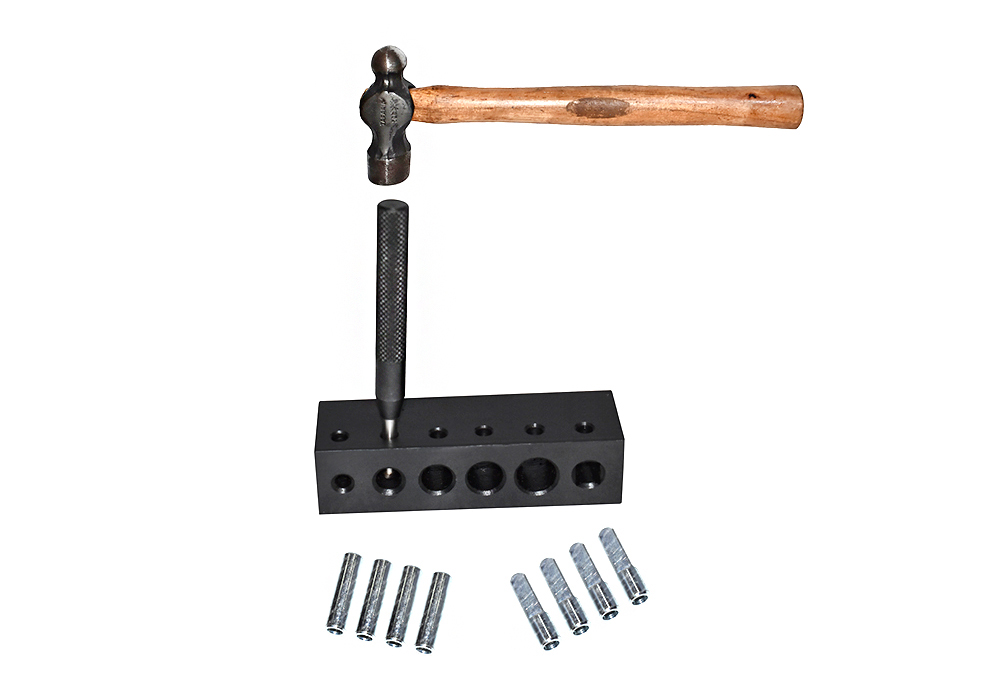

Shaft Repair Tool

Shaft Repair Tool

It allows users to quickly and safely attach couplings onto the shaft ensuring maximum useful life for the shaft.
- SHT-1 Shaft Repair Tool with Hammer.
- SHP-1 Replacement Hammer.

Flexible Shaft Lubricator

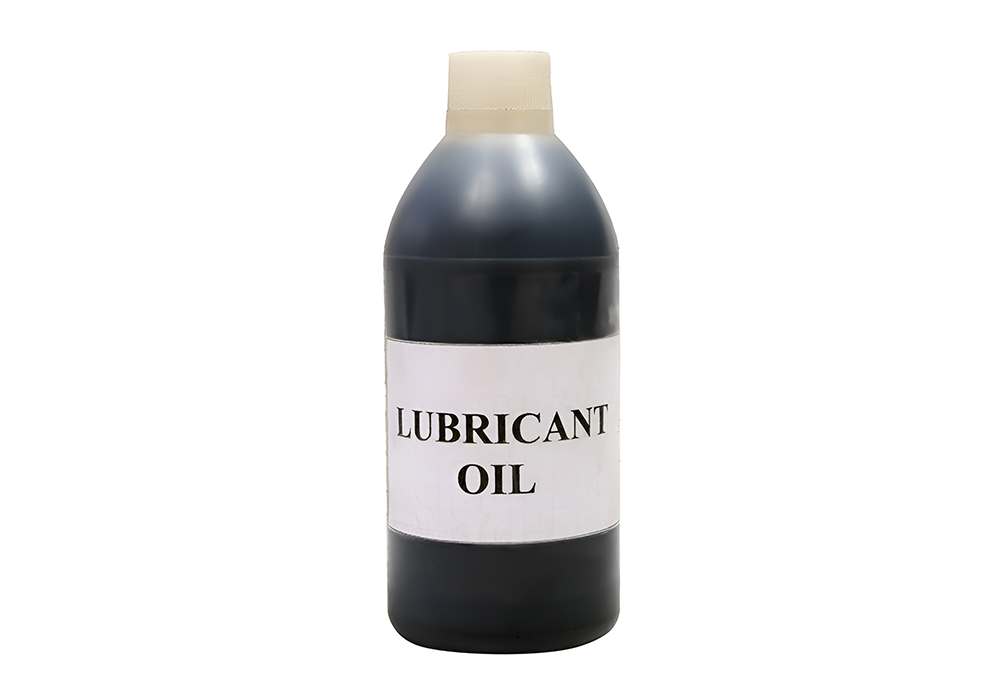

Lubricant

Lubricant

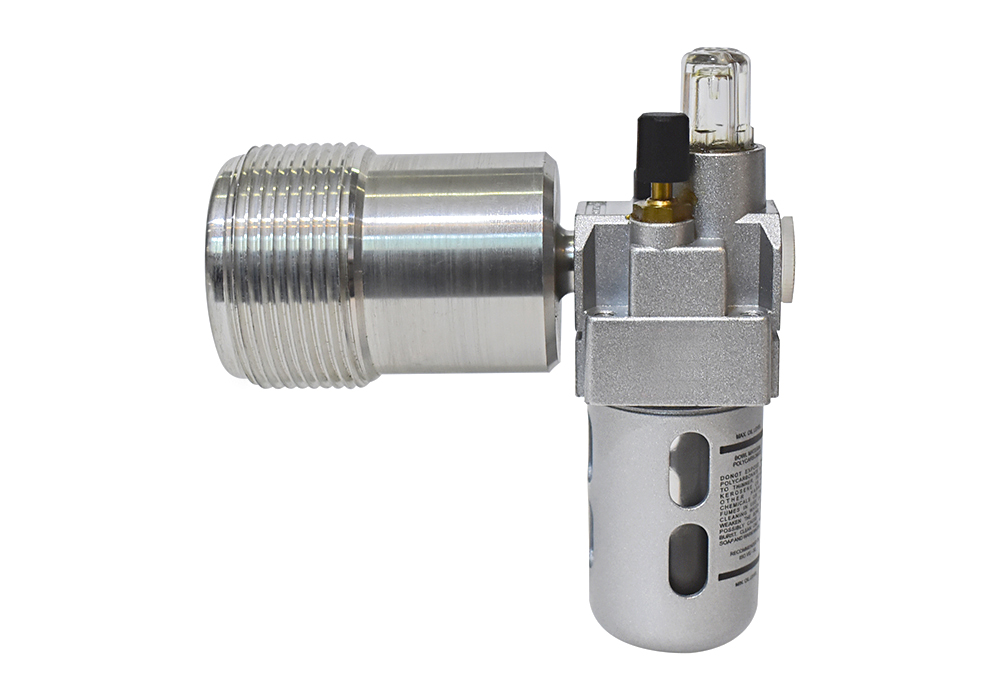

Flexible Shaft Lubricator

Flexible Shaft Lubricator

It is used to lubricate flexible shafts for maximum useful life. They are also used to lubricate shafts prior to storage. The lubricator is filled with a water soluble lubricant that enters and lubricates the shaft when air supply is provided to the lubricator. The residue lubricant washes out with water when the shaft is used again.
- PFSL-1 Flexible Shaft Lubricator.
- PLUBE Lubricant for flexible shaft lubricator, 8 ounces (0.25 litres)

SHAFT REPAIR 1" & UP I.D.

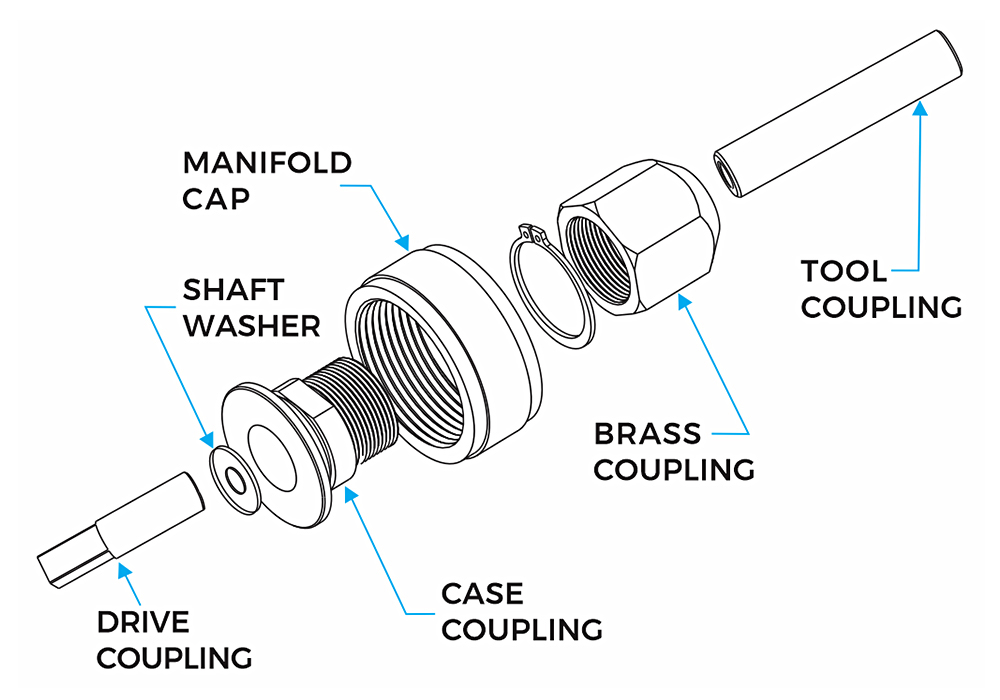

Shaft Repair Couplings

Shaft Repair Couplings

The life of flexible shafts can be extended by proper use and maintenance. If a flexible shaft should break at either end it can be easily repaired by cutting off the end portion and using a shaft repair tool to attach a coupling onto the cut shaft.

FLEXIBLE SHAFT REPAIR AND MAINTENANCE

For PFS-750, PFS-875 and PFS-875-SS Flexible Shafts

Flexible Shaft Model PFS-875 / PFS-875-SS
Tool Coupling TC-750
Case Coupling CC-875
Manifold Cap MC-2
Shaft Washer 9/16x7/8
Drive Coupling DC-750
Brass Coupling BC-875

Shaft Repair Tool For Flexible Shaft Repair

Shaft Repair Tool For Flexible Shaft Repair

It allows users to quickly and safely attach couplings onto the shaft ensuring maximum useful life for the shaft.
- SHT-1 Shaft Repair Tool with Hammer.
- SHP-1 Replacement Hammer.

Flexible Shaft Lubricator

Lubricant

Lubricant

Flexible Shaft Lubricator

Flexible Shaft Lubricator

It is used to lubricate flexible shafts for maximum useful life. They are also used to lubricate shafts prior to storage. The lubricator is filled with a water soluble lubricant that enters and lubricates the shaft when air supply is provided to the lubricator. The residue lubricant washes out with water when the shaft is used again.
- PFSL-1 Flexible Shaft Lubricator.
- PLUBE Lubricant for flexible shaft lubricator, 8 ounces (0.25 litres).

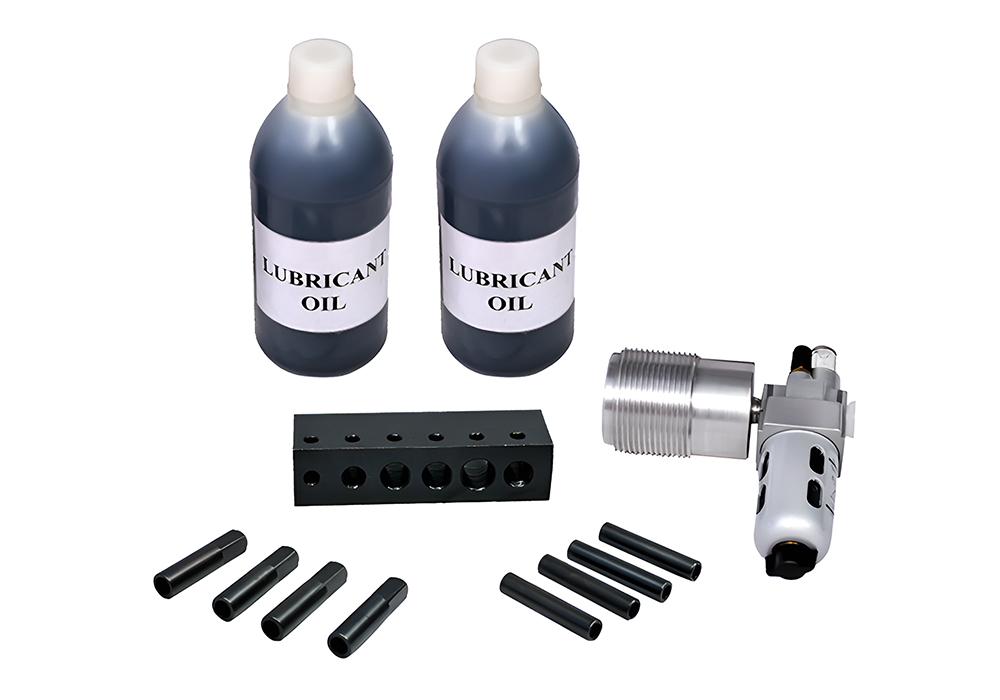

Flexible Shaft Repair Kits

Repair Kit

Repair Kit

Flexible Shaft Lubricato

Flexible Shaft Lubricato

Flexible shaft repair kits include 4 drive end repair couplings, 4 tool end repair couplings, 1 shaft repair tool with punch,
1 flexible shaft lubricator, 2 bottles [8 ounce (0.25 litres) each] of lubricant for flexible shaft lubricator.
- REP-750-KIT Repair Kit for PFS-750, PFS-875 and PFS-875-SS Flexible Shafts.

Coming Soon in our Tube Cleaner Line

  • Boiler Cleaning Systems (Twin Drive).
  • Shoot Thru Tube Cleaning Guns.
    And more .....
