Tube / Pipe Bevelling Machine Fm-24000

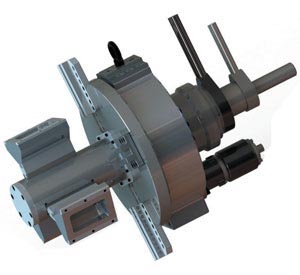

FMP-24000 Pneumatic

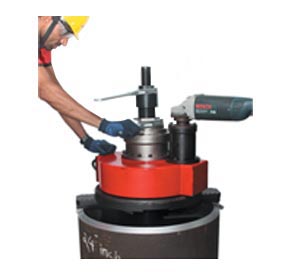

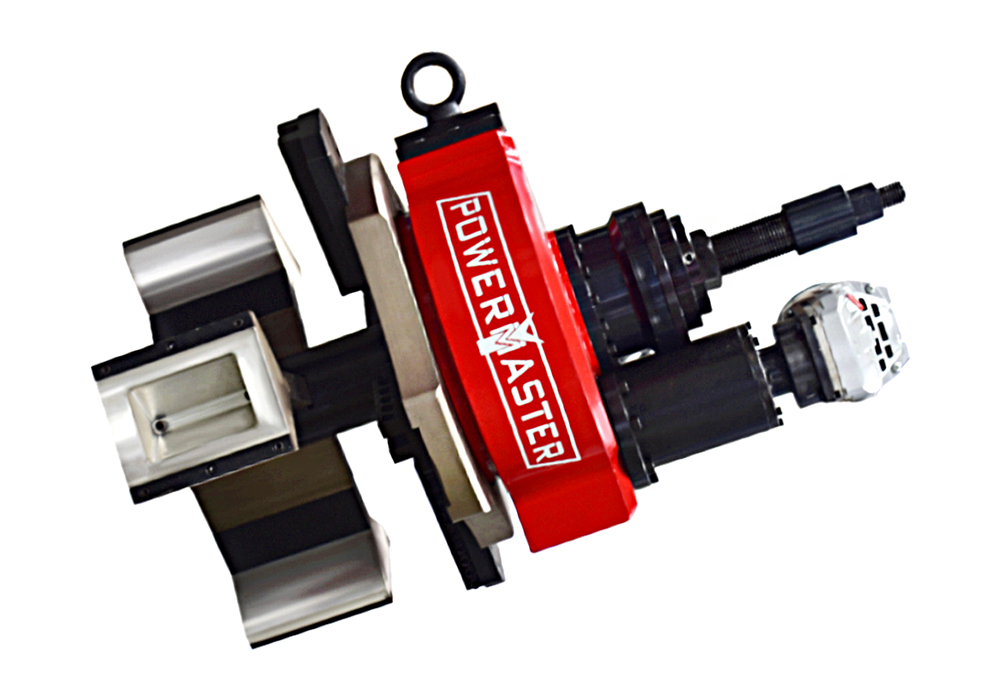

FME-24000 Electric

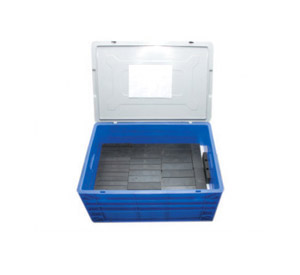

FM-24000 (180-609 mm) - Jaw Set
The FM-24000 is a combination of power and range in a light and portable design. Rugged and balanced machine suitable for tubes and pipes in the size range of 180mm to 609mm in internal diameter.
| Drive | Pneumatic | Electric |
|---|---|---|
| Locking Range mm (inch) | 180 - 609 (7”- 24”) | 180 - 609 (7”- 24”) |
| Ideal Speed RPM | 10 | 13 |
| Torque Nm (lbf.ft) | 3376 (2490) | 1400 (1032) |
| Feeding Stroke mm (inch) | 60 (2.36”) | 60 (2.36”) |
| Pneumatic Power HP | 3.5 | - |
| Air Consumption cfm | 95 | - |
| Air Pressure Bar (psi) | 6.2 (90) | - |
| Electric Power watts | - | 2600 |
| Voltage V | - | 230 |
| Net Weight kg (lb) | 250 (550) | 250 (550) |
