Tube / Pipe Bevelling and Cutting Split Frame Machine- SF-1824

Tube / Pipe Bevelling and Cutting Split Frame Machine- SF-1824

SF-1824 ELECTRIC

Externally mounted SF-1824 is a split frame, clamshell type light and portable design. A rugged and slim machine suitable for tubes and pipes in the size range of 457.2 mm to 609.6 mm in external diameter. It is a new generation heavy duty facing, bevelling and cutting machine designed for the Piping industry.

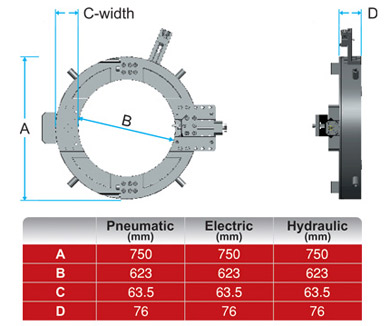

Tube / Pipe Bevelling and Cutting Split Frame Machine- SF-612

Technical Specification

Drive Pneumatic Electric Hydraulic
Locking Range mm (inch) 457.2-609.6 (18” - 24”) 457-609.6 (18” - 24”) 457-609.6 (18” - 24”)
Idle Speedrpm 12 15 17
Power HP/Watts 4 3.5/2600 5 HP(3 PHASE)
Air Consumptioncfm 95 - -
Air/Oil PressureBar (psi) 6.2 (90) - 100 bar
VoltageV - 230 415
Net Machine Weight kg (lb) 48.0(106.0) 48.0(106.0) 48.0(106.0)
Tool Holder Weight kg (lb) 4.5(9.9) 4.5(9.9) 4.5(9.9)
Drive Weight HP/Watts 16.0(35.3) 23.0(50.7) 9.0(19.8)
