Tube Pipe Bevelling and Cutting Split Frame Machine Sf-3442

Tube Pipe Bevelling and Cutting Split Frame Machine Sf-3442

SF-3442 ELECTRIC

Externally mounted SF-3442 is a split frame, clamshell type light and portable design. A rugged and slim machine suitable for tubes and pipes in the size range of 863.6 mm to 1066.8 mm in external diameter. It is a new generation heavy duty facing, bevelling and cutting machine designed for the Piping industry.

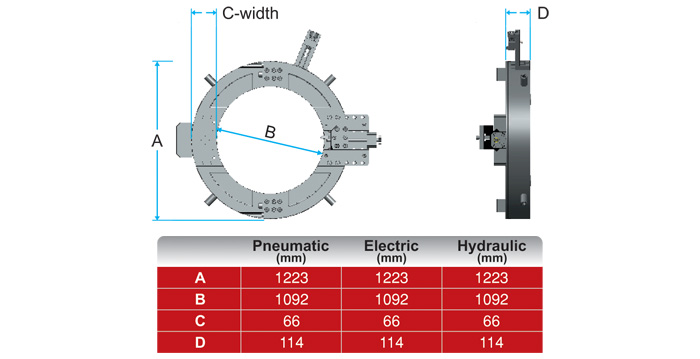

Tube Pipe Bevelling and Cutting Split Frame Machine Sf-3442

Technical Specification

Drive Pneumatic Electric Hydraulic
Locking Range mm (inch) 863.6-1066.8 (34” - 42”) 863.6-1066.8 (34” - 42”) 863.6-1066.8 (34” - 42”)
Idle Speedrpm 10 10 9
PowerHP/Watts 4.2 3.5/2600 7.5 HP(3 PHASE)
Air Consumption cfm 95 - -
Air/Oil PressureBar (psi) 6.2 (90) - 100 bar
Voltage V - 230 415
Net Machine Weight kg (lb) 129.0(284.0) 129.0(284.0) 129.0(284.0)
Tool Holder Weight kg (lb) 5.0(11.0) 5.0(11.0) 5.0(11.0)
Drive Weight kg (lb) 16.0(35.3) 23.0(50.7) 9.0(19.8)
