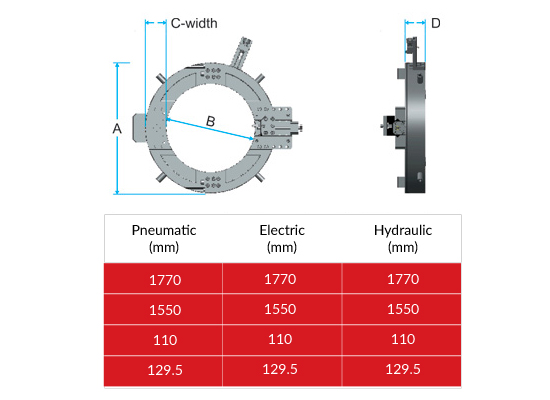

Tube Pipe Bevelling and Cutting Split Frame Machine Sf-4860

Tube Pipe Bevelling and Cutting Split Frame Machine Sf-4860

SF-4860 Hydraulic

Externally mounted SF-4860 is a split frame, clamshell type light and portable design. A rugged and slim machine suitable for tubes and pipes in the size range of 1219 mm to 1524 mm in external diameter. It is a new generation heavy duty facing, bevelling and cutting machine designed for the Piping industry.

Tube Pipe Bevelling and Cutting Split Frame Machine Sf-4048

Technical Specification

Drive Pneumatic Electric Hydraulic
Locking Range mm (inch) 1219-1524 (48” - 60”) 1219-1524 (48” - 60”) 1219-1524 (48” - 60”)
Idle Speedrpm 6 7 6
Power HP/Watts 4.2 3.5/2600 7.5 HP (3 PHASE)
Air Consumption cfm 100/110 - -
Air/Oil PressureBar (psi) 6.2 (90) - 100 bar
VoltageV - 230 415
Net Machine Weight kg (lb) 538.0(1186.0) 538.0(1186.0) 538.0(1186.0)
Tool Holder Weight kg (lb) 13.4(29.5) 13.4(29.5) 13.4(29.5)
Drive Weight kg (lb) 16.0(35.3) 23.0(50.7) 9.0(19.8)
