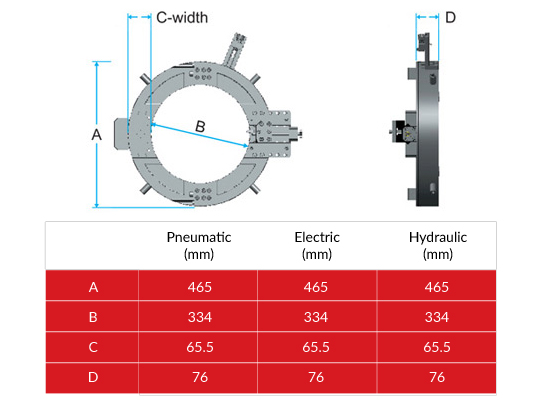

Tube / Pipe Bevelling and Cutting Split Frame Machine- SF-612

Tube / Pipe Bevelling and Cutting Split Frame Machine- SF-612

SF-612 Pneumatic

Tube / Pipe Bevelling and Cutting Split Frame Machine- SF-612

SF-612 Electric

Tube / Pipe Bevelling and Cutting Split Frame Machine- SF-612

SF-612 Hydraulic

Externally mounted SF-612 is a split frame, clamshell type light and portable design. A rugged and slim machine suitable for tubes and pipes in the size range of 152.4 mm to 304.8 mm in external diameter. It is a new generation heavy duty facing, bevelling and cutting machine designed for the Piping industry.

Tube / Pipe Bevelling and Cutting Split Frame Machine- SF-612

Technical Specification

Drive Pneumatic Electric Hydraulic
Locking Range mm (inch) 152.4-304.8 (6” - 12”) 152.4-304.8 (6” - 12”) 152.4-304.8 (6” - 12”)
Idle Speed RPM 23 25 25
Power HP/Watts 4 1.5/1100 5 HP(3 PHASE)
Air Consumption cfm 95 - -
Air/Oil PressureBar (psi) 6.2 (90) - 100 bar
Voltage V - 230 415
Net Machine Weight kg (lb) 24(52.9) 24(52.9) 24(52.9)
Tool Holder Weight kg (lb) 4.5(9.9) 4.5(9.9) 4.5(9.9)
Drive Weight kg (lb) 7.0(15.4) 6.0(13.2) 7.0(15.4)
