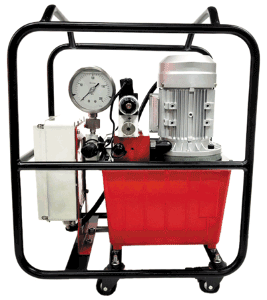

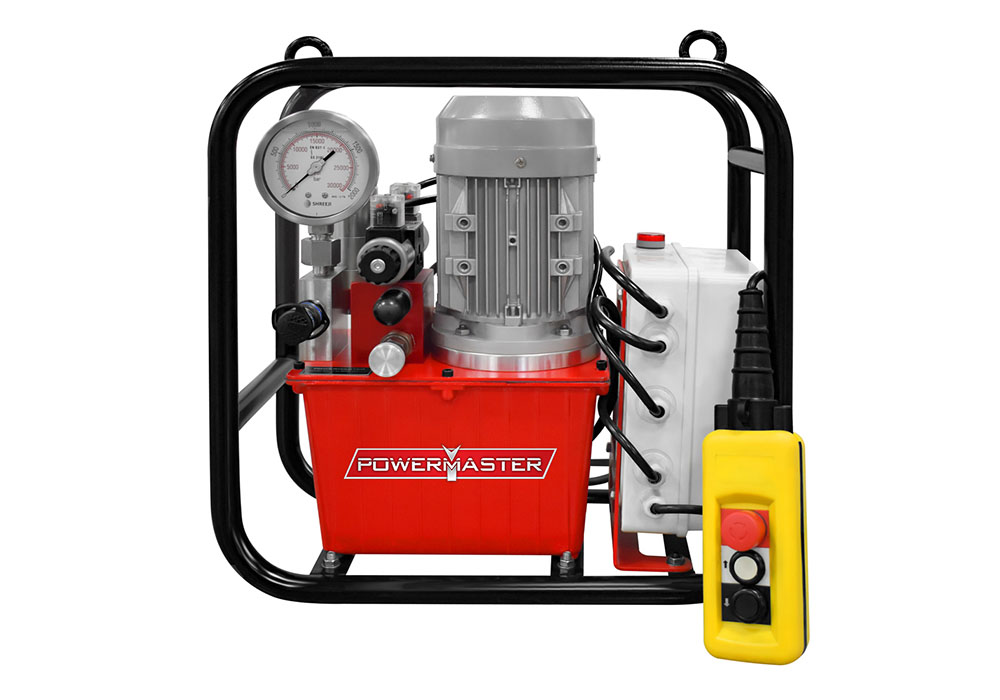

Electric Bolt Tensioner Pump PM-EH-1500
Features
- Heavy Duty Steel Frame: Unit is enclosed in heavy duty frame for protection during handling usage and transportation.
- Calibrated Pressure Gauge: Calibrated 100mm (4”), liquid filled, 2000 bar rating pressure gauge with dual reading of bar and psi.
- Ergonomical layout: Logical layout of equipments and controls ensure easy operation and maintenance.
- High Flow Rate: Provides high initial flow rate to ensure faster operation.
- Remote Control: Hand haled remote control for easy and safe operation.
- High Quality Equipments: Heavy duty cycle comforts for reliability and durability of the unit.
The PM-EH-1500 Electric motor with gear pump are designed to provide optimal service with bolt tensioner or hydraulic tools single-acting. Equipped with remote control with 5 m. cable for an easy use, 5 Ltr. tank, electromagnetic level and protective framework. It is the ideal tool under all job conditions.
Technical Details
| Model | PM-EH-1500 | |
|---|---|---|
| Maximum pressure 1st stage | bar | 150 |
| psi | 2,145 | |
| Maximum pressure 2nd stage | bar | 1,500 |
| psi | 21,450 | |
| Hydraulic flow 1st stage | Lt./min | 3 |
| Hydraulic flow 2nd stage | Lt./min | 0.7 |
| Power rating and Voltage | kW / V | 0.7 / 230 V - 50Hz / single-phase |
| Speed | rpm | 1400 |
| Sound level | dB(A) | 80 |
| Intensification factor | 13 : 1 | |
| Electric pump weight | Kg. | 42 (with 5 Lt. Reservoir, frame and remote control) |
Other Models with higher maximum operating pressures, digital pressure gauges and larger hydraulic reservoir capacities are available as per customer requirements.
